TOYOTA SUPRA JZA80R-AJPVZW / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

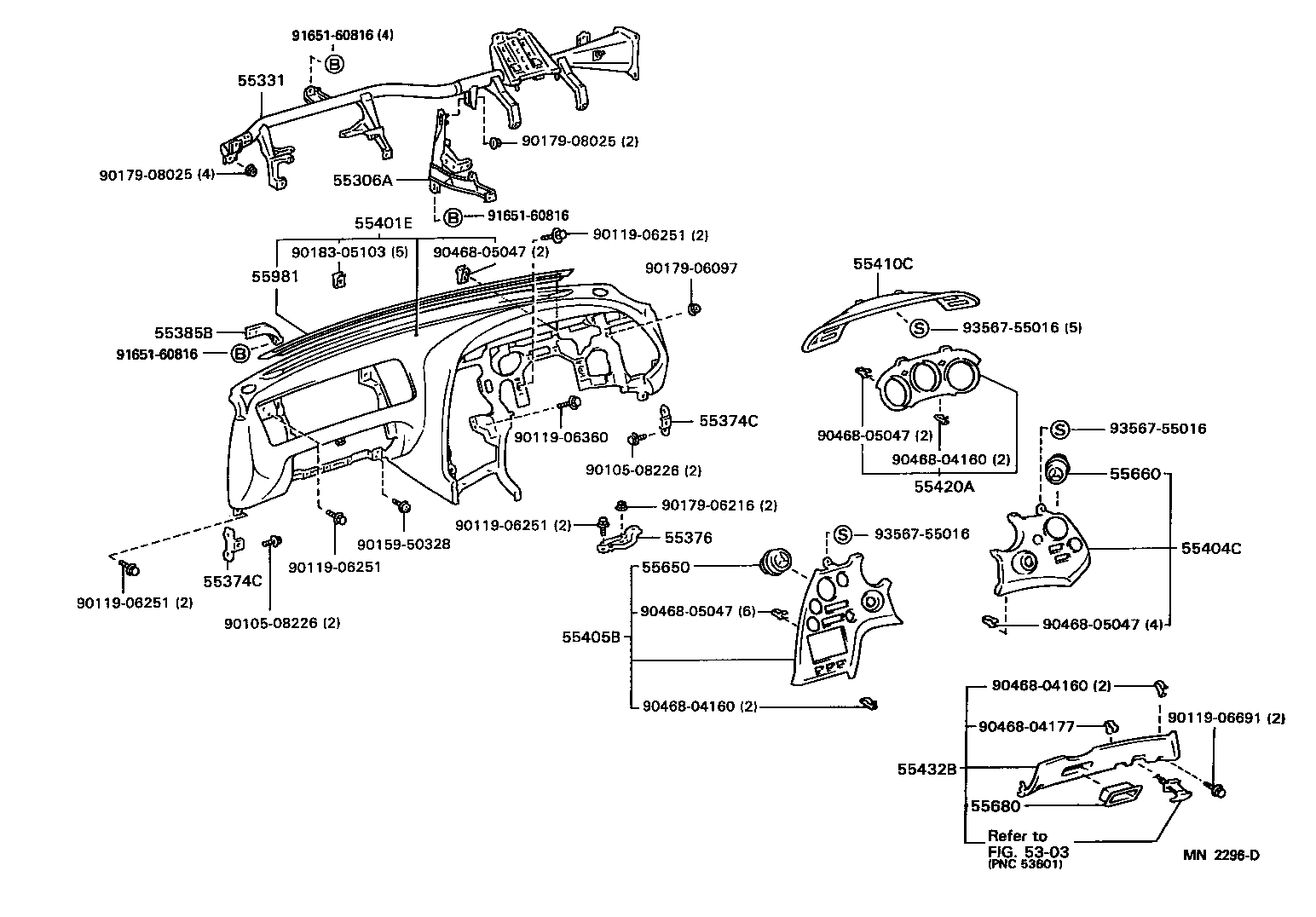

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(9305- )RHD

 SUPRA |  INSTRUMENT PANEL GLOVE COMPARTMENT ** Refer Fig 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55331 - REINFORCEMENT, INSTRUMENT PANEL 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55385B - BRACKET, FINISH PANEL MOUNTING, NO.5 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 55981 - GARNISH, DEFROSTER NOZZLE, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
