TOYOTA STOUT YK110L-MRP / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

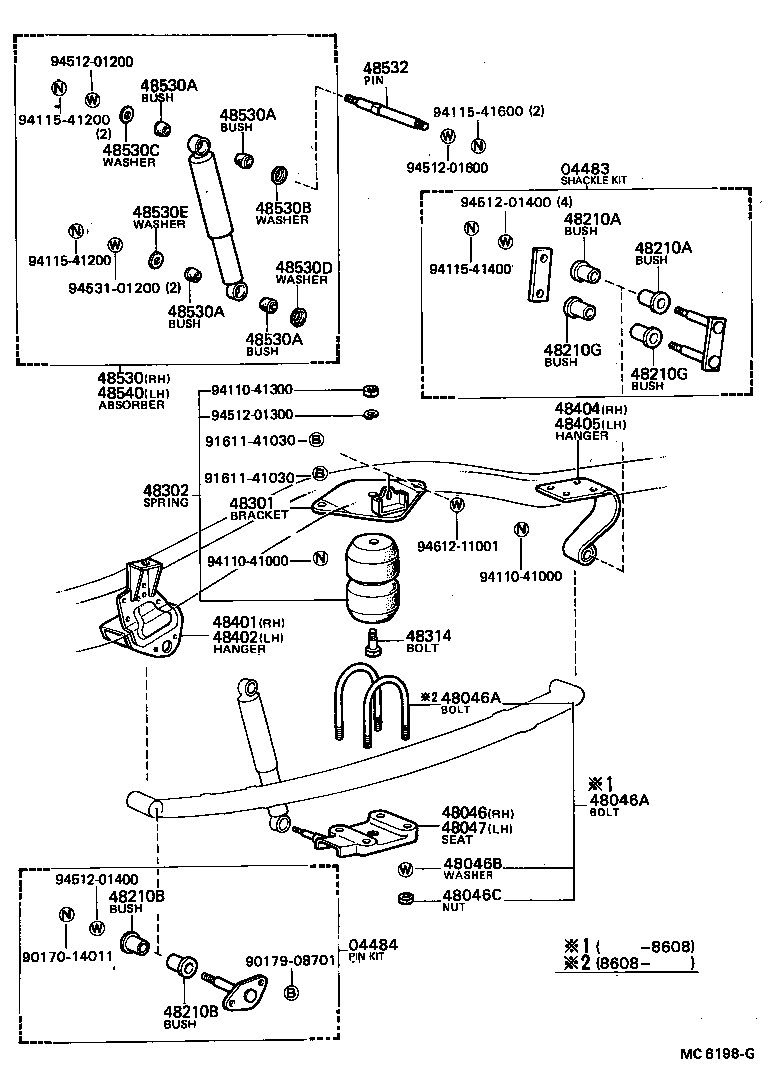

ILLUST NO. 1 OF 2(7903-9703)

 STOUT |  REAR SPRING SHOCK ABSORBER 04483 - SHACKLE KIT, REAR SPRING 04484 - PIN KIT, REAR SPRING 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48046A - BOLT, U(FOR REAR SPRING) 48046B - WASHER(FOR REAR SPRING U BOLT) 48046C - NUT(FOR REAR SPRING U BOLT) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210B - BUSH(FOR REAR SPRING PIN) 48210B - BUSH(FOR REAR SPRING PIN) 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) 48301 - BRACKET SUB-ASSY, HOLLOW SPRING 48302 - SPRING SUB-ASSY, HOLLOW 48314 - BOLT, HOLLOW SPRING SET 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48532 - PIN, REAR SHOCK ABSORBER PIVOT 48540 - ABSORBER ASSY, SHOCK, REAR LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
