TOYOTA STOUT YK110L-MRP / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

(7903- )GEN

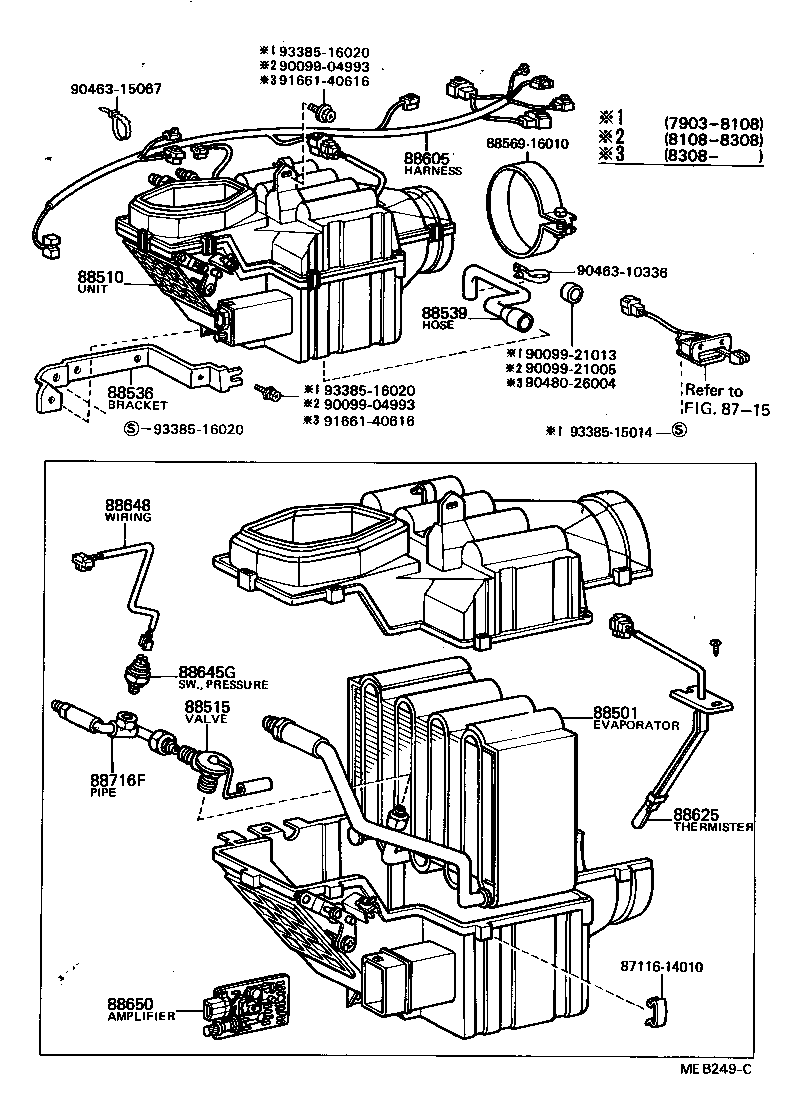

 STOUT |  HEATING AIR CONDITIONING COOLER UNIT  ** Std Part ** Refer Fig 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88510 - UNIT ASSY, COOLER 88515 - VALVE, COOLER EXPANSION 88536 - BRACKET, COOLING UNIT, NO.1 88539 - HOSE, COOLER UNIT DRAIN, NO.1  ** Std Part 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88625 - THERMISTOR, COOLER, NO.1 88645G - SWITCH, PRESSURE 88648 - WIRING, COOLER, NO.1 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88716F - PIPE, COOLER REFRIGERANT LIQUID, F  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
