TOYOTA LAND CRUISER 80 HDJ80L-GNPEXW / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

VALVE BODY OIL STRAINER ATM

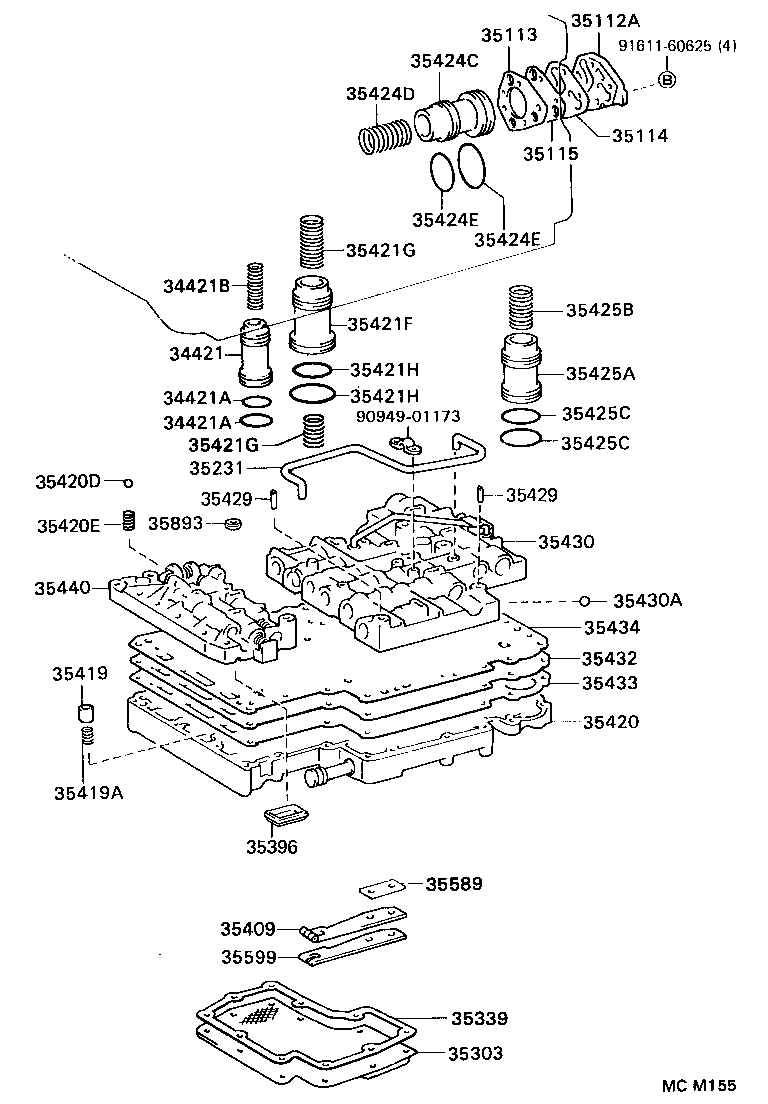

A440F ILLUST NO. 1 OF 5(9001-9208)ATM

LAND CRUISER 80 | VALVE BODY OIL STRAINER ATM 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) 35112A - COVER, FRONT CLUTCH ACCUMULATOR 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 35115 - PLATE, FRONT CLUTCH ACCUMULATOR 35231 - TUBE, LOCK UP SIGNAL VALVE APPLY 35303 - STRAINER SUB-ASSY, OIL 35339 - GASKET, OIL STRAINER 35396 - STRAINER, THROTTLE OIL 35409 - SPRING SUB-ASSY, MANUAL DETENT 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35420 - BODY ASSY, LOWER VALVE 35420D - BALL (FOR LOWER VALVE BODY) 35420E - SPRING (FOR LOWER VALVE BODY) 35421F - PISTON, ACCUMULATOR, NO.2 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421H - RING (FOR ACCUMULATOR PISTON NO.2) 35421H - RING (FOR ACCUMULATOR PISTON NO.2) 35424C - PISTON, C-1 ACCUMULATOR 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35429 - TUBE, LINE PRESSURE 35429 - TUBE, LINE PRESSURE 35430 - BODY ASSY, REAR UPPER VALVE 35430A - BALL (FOR REAR UPPER VALVE BODY) 35432 - PLATE, VALVE BODY, NO.1 35433 - GASKET, VALVE BODY, NO.1 35434 - GASKET, VALVE BODY, NO.2 35440 - BODY ASSY, FRONT UPPER VALVE 35589 - SPACER, MANUAL DETENT SPRING 35599 - COVER, MANUAL DETENT SPRING 35893 - GASKET, CENTER SUPPORT APPLY ** Std Part ** Std Part
