TOYOTA PREVIA TCR10L-REMDKA / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CLUTCH PEDAL FLEXIBLE HOSE

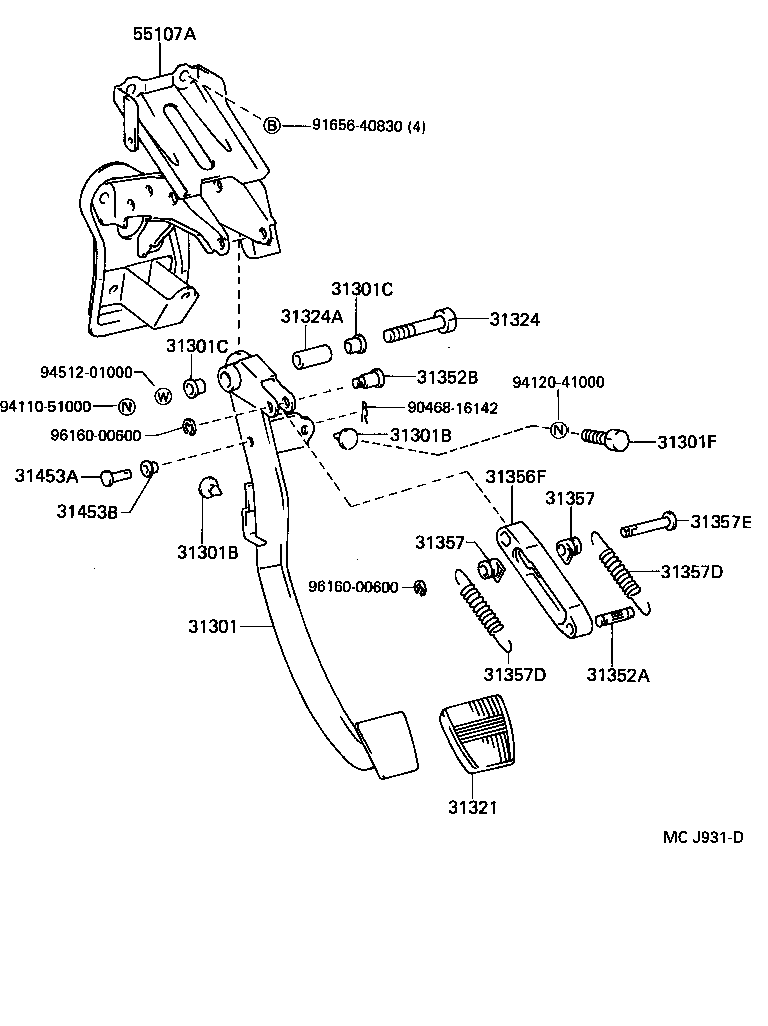

ILLUST NO. 1 OF 2(9001-9308)MTM

PREVIA | CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31352A - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.1 31352B - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.2 31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1 31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2 31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) 31357E - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.3 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
