TOYOTA LAND CRUISER 80 HZJ80L-GNMNSW / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CLUTCH PEDAL FLEXIBLE HOSE

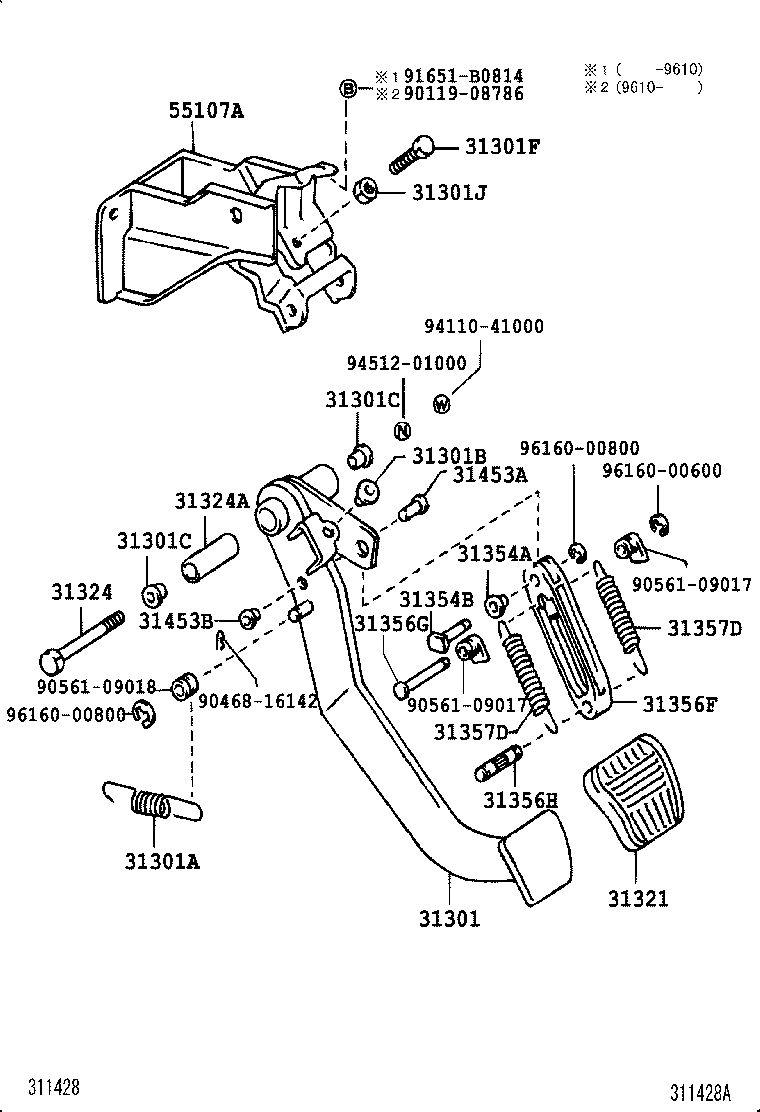

ILLUST NO. 1 OF 2(9001-9501)MTM..GX,STD ; (9501-9608)MTM ; (9608-

LAND CRUISER 80 | CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301A - SPRING(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31301J - NUT(FOR CLUTCH PEDAL STOPPER) 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) 31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1 31356G - PIN(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE) 31356H - PIN, NO.2(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE) 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
