TOYOTA HIACE VAN COMUTER LH66LV-MRJHW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

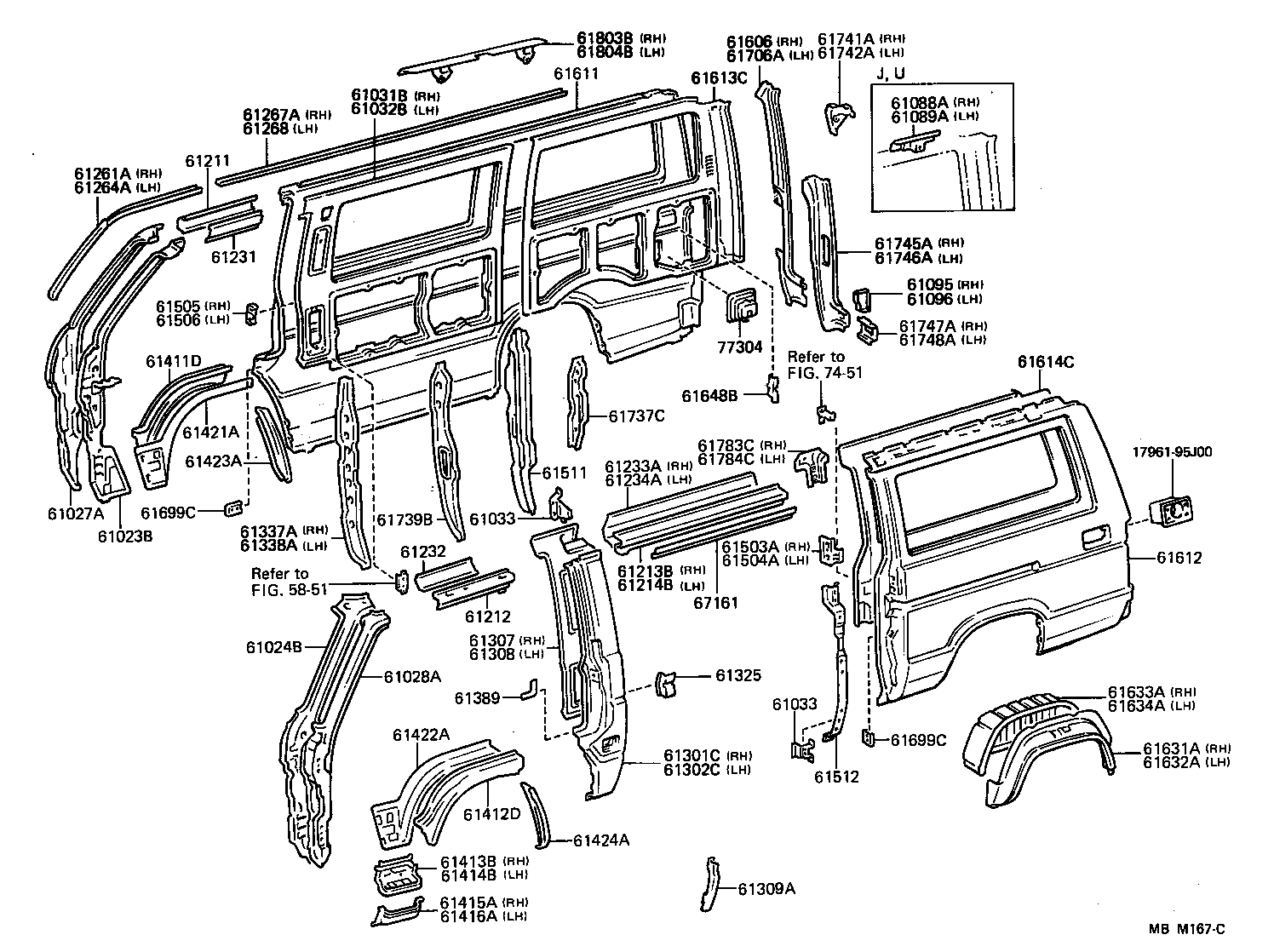

SIDE MEMBER

ILLUST NO. 1 OF 2(8708- )V4D

 HIACE VAN COMUTER |  SIDE MEMBER  ** Std Part ** Refer Fig 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH 61031B - EXTENSION SUB-ASSY, QUARTER PANEL, RH 61032B - EXTENSION SUB-ASSY, QUARTER PANEL, LH 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR 61033 - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR 61088A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 RH 61089A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 LH 61095 - PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH 61096 - PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH 61211 - RAIL, ROOF SIDE, OUTER RH 61212 - RAIL, ROOF SIDE, OUTER LH 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH 61231 - RAIL, ROOF SIDE, INNER RH 61232 - RAIL, ROOF SIDE, INNER LH 61233A - RAIL, ROOF SIDE, INNER NO.2 RH 61234A - RAIL, ROOF SIDE, INNER NO.2 LH 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH 61309A - SEAL SUB-ASSY, CENTER BODY PILLAR 61325 - REINFORCEMENT, CENTER BODY PILLER, CENTER 61337A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH 61338A - REINFORCEMENT, CENTER BODY PILLAR, INNER LH 61389 - PATCH, CENTER BODY PILLAR, OUTER 61411D - PANEL, FENDER, OUTER RH 61412D - PANEL, FENDER, OUTER LH 61413B - PANEL, FRONT STEP, RH 61414B - PANEL, FRONT STEP, LH 61415A - PANEL, FRONT STEP, UNDER, RH 61416A - PANEL, FRONT STEP UNDER, LH 61421A - PANEL, FENDER, INNER RH 61422A - PANEL, FENDER, INNER LH 61423A - PANEL, FENDER, INNER LOWER RH 61424A - PANEL, FENDER, INNER LOWER LH 61503A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH 61505 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH 61511 - PILLAR, QUARTER LOCK, RH 61512 - PILLAR, QUARTER LOCK, LH 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH 61611 - PANEL, QUARTER, RH 61612 - PANEL, QUARTER, LH 61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH 61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61648B - BRACKET, QUARTER PANEL PAD 61699C - RETAINER, COURTESY SWITCH 61699C - RETAINER, COURTESY SWITCH 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH 61737C - REINFORCEMENT, QUARTER, INNER 61739B - REINFORCEMENT,  EXTENSION QUARTER INNER PANEL 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH 61747A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH 61748A - EXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH 61783C - BRACE, QUARTER PANEL, INNER RH 61784C - BRACE, QUARTER PANEL, INNER LH 61803B - REINFORCE SUB-ASSY, ROOF SIDE, OUTER RH 61804B - REINFORCE SUB-ASSY, ROOF SIDE, OUTER LH 67161 - RETAINER, SLIDE DOOR W/STRIP SET, RH ** Refer Fig 77304 - BOX SUB-ASSY, FUEL INLET
