REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(8908- )LH102,112,RZH102,103,112,113,115..LHD

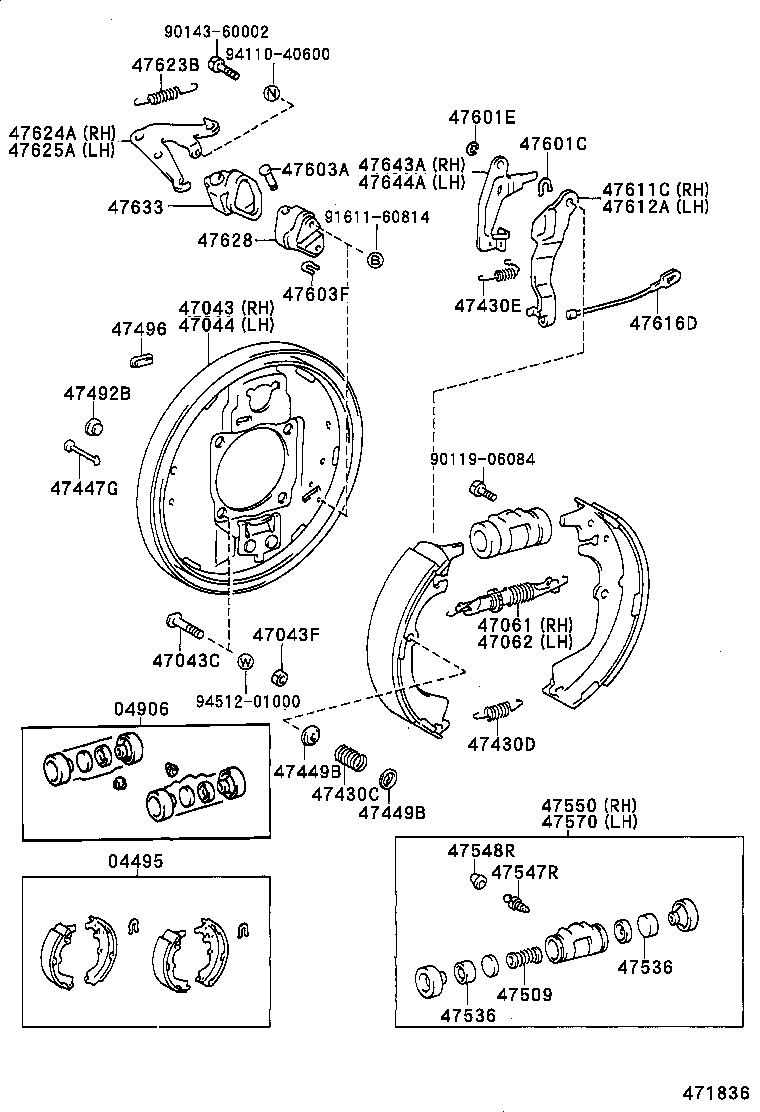

HIACE VAN COMUTER | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47061 - STRUT SET, PARKING BRAKE SHOE, RH 47062 - STRUT SET, PARKING BRAKE SHOE, LH 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47509 - SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47601C - WASHER, C(FOR REAR BRAKE) 47601E - RING, E(FOR REAR BRAKE) 47603A - PIN, W/HOLE(FOR REAR BRAKE) 47603F - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) 47611C - LEVER, PARKING BRAKE SHOE, RH 47612A - LEVER, PARKING BRAKE SHOE, LH 47616D - WIRE, PARKING BRAKE 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) 47624A - CRANK, PARKING BRAKE BELL, RH 47625A - CRANK, PARKING BRAKE BELL, LH 47628 - BRACKET, REAR BRAKE BELLCRANK 47633 - BOOT, PARKING BRAKE BELLCRANK 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
