TOYOTA HIACE VAN COMUTER LH112L-SBPRSW / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SHIFT LEVER RETAINER

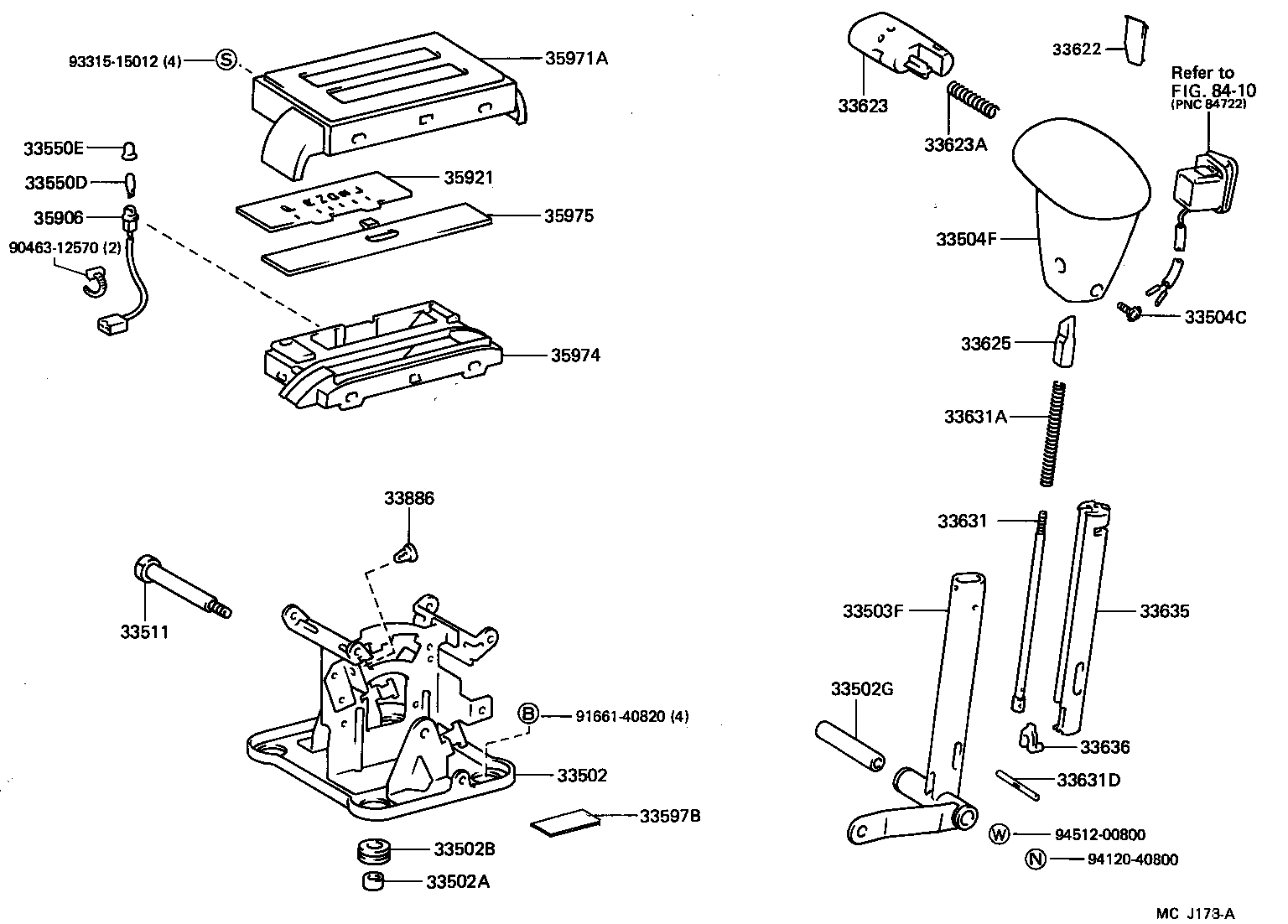

ILLUST NO. 1 OF 2(8908- )4FC

HIACE VAN COMUTER | SHIFT LEVER RETAINER 33502 - PLATE SUB-ASSY, SHIFT LEVER 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33502B - GROMMET (FOR SHIFT LEVER PLATE) 33502G - COLLAR (FOR SHIFT LEVER PLATE) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33597B - SEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT) 33622 - COVER, SHIFT LEVER KNOB, NO.1 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33635 - GUIDE, WIRE (FOR SHIFT LEVER) 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) 33886 - STOPPER, SHIFT LEVER 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
