TOYOTA MR2 AW11L-WJMQFW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

RADIATOR WATER OUTLET

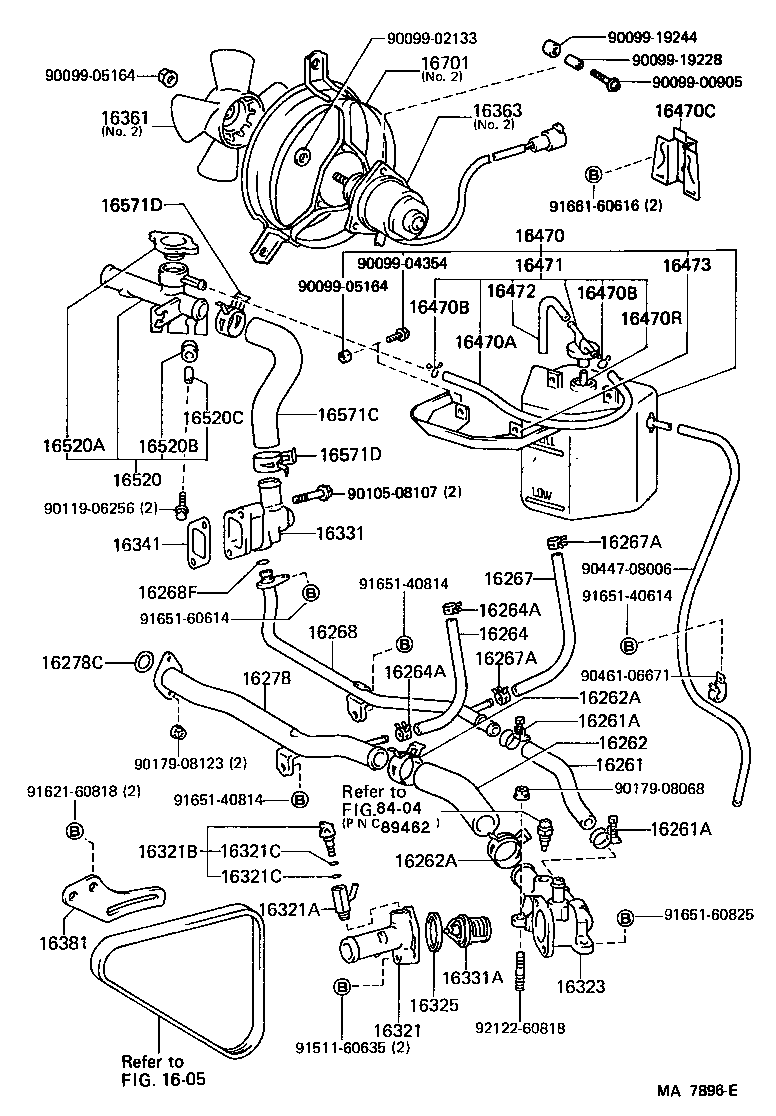

ILLUST NO. 1 OF 2(8411- )

MR2 | RADIATOR WATER OUTLET ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16262 - HOSE, WATER INLET 16262A - CLIP(FOR WATER INLET HOSE) 16262A - CLIP(FOR WATER INLET HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) 16321 - INLET, WATER 16321A - UNION(FOR WATER INLET) 16321B - PLUG, DRAIN COCK(FOR WATER INLET UNION) 16321C - RING, O(FOR WATER INLET UNION DRAIN COCK PLUG) 16321C - RING, O(FOR WATER INLET UNION DRAIN COCK PLUG) 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16361 - FAN 16363 - MOTOR, COOLING FAN 16381 - BAR, FAN BELT ADJUSTING 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470C - BRACKET(FOR RADIATOR RESERVE TANK) 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16473 - SUPPORT(FOR RADIATOR RESERVE TANK) 16520 - FILLER ASSY, WATER 16520A - CAP SUB-ASSY, WATER FILLER 16520B - BUSHING(FOR WATER FILLER) 16520C - PIPE(FOR WATER FILLER) 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16701 - SHROUD SUB-ASSY, FAN ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
