TOYOTA MR2 AW11L-WJMQFW / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COMPRESSOR

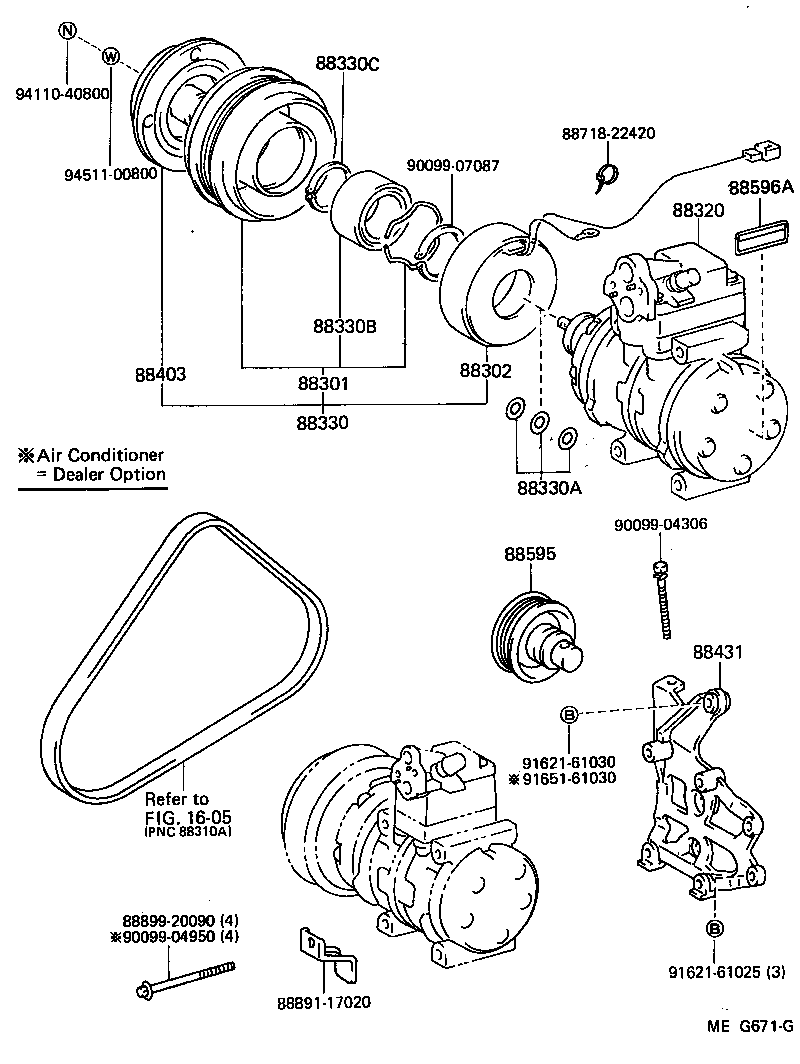

ILLUST NO. 1 OF 2(8411- )

MR2 | HEATING AIR CONDITIONING COMPRESSOR ** Refer Fig 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88320 - COMPRESSOR ASSY, COOLER 88330 - CLUTCH ASSY, MAGNET 88330A - WASHER (FOR MAGNET CLUTCH) 88330B - BEARING, MAGNET CLUTCH 88330C - RING, SNAP (FOR MAGNET CLUTCH) 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88595 - PULLEY, COOLER COMPRESSOR IDLE 88596A - PLATE, CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
