TOYOTA MR2 AW11L-WJMQFW / ELECTRICAL / ELECTRONIC FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ELECTRONIC FUEL INJECTION SYSTEM

(8411- )

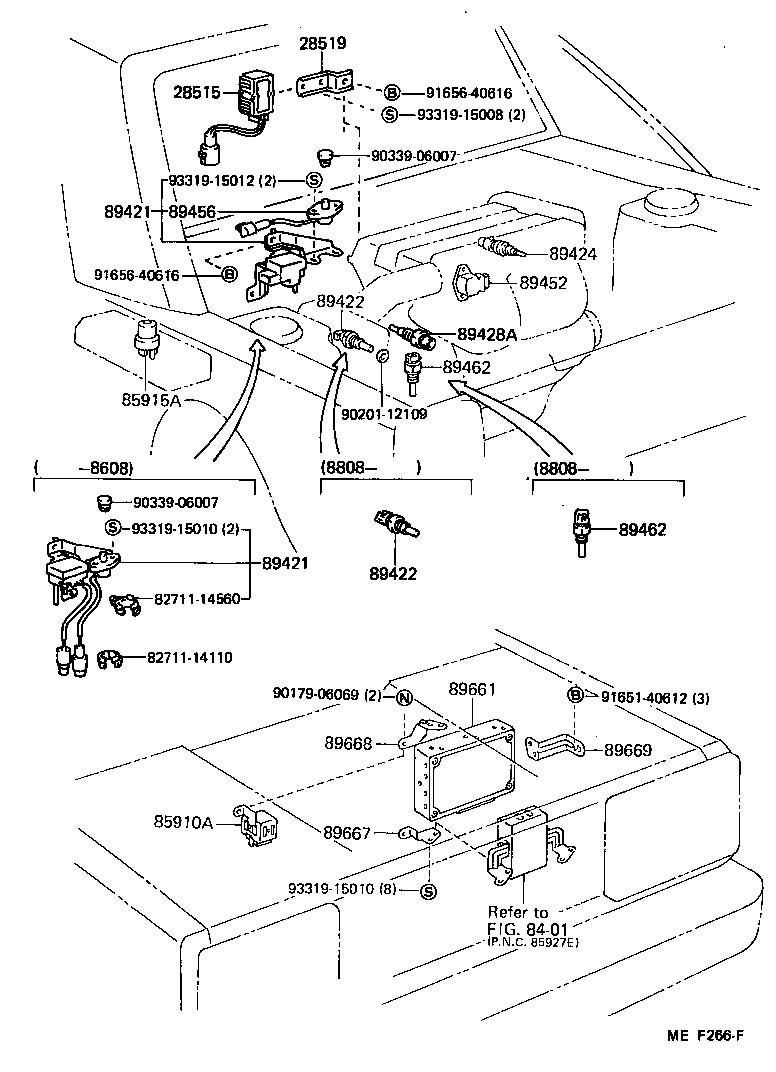

 MR2 |  ELECTRONIC FUEL INJECTION SYSTEM 28515 - RESISTOR, SOLENOID 28519 - BRACKET, SOLENOID RESISTOR  ** Std Part  ** Std Part ** Refer Fig 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) 85915A - RELAY, MAIN 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) 89428A - SWITCH, WATER TEMPERATURE (FOR E.F.I) 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) 89456 - RESISTOR, VARIABLE 89462 - SWITCH, START INJECTOR TIME 89462 - SWITCH, START INJECTOR TIME 89661 - COMPUTER, ENGINE CONTROL 89667 - BRACKET, ENGINE CONTROL COMPUTER 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
