TOYOTA DYNA150 YY61L-MDBTW3 / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

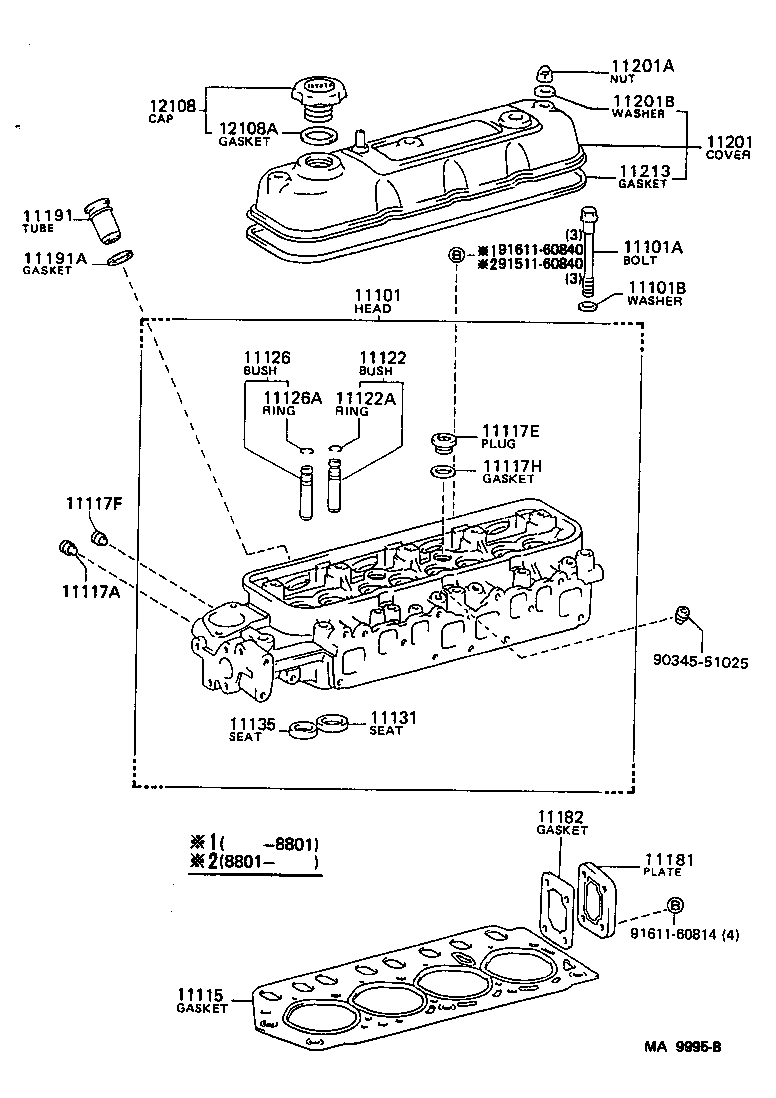

CYLINDER HEAD

(8708-8808)3Y

DYNA150 | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11115 - GASKET, CYLINDER HEAD 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 11117H - GASKET(FOR WATER HOLE) 11122 - BUSH, INTAKE VALVE GUIDE 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11126 - BUSH, EXHAUST VALVE GUIDE 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11181 - PLATE, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11191 - TUBE, SPARK PLUG 11191A - GASKET(FOR SPARK PLUG TUBE) 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Std Part ** Std Part ** Std Part ** Std Part
