TOYOTA DYNA BU85L-MDDHTW3 / POWERTRAIN-CHASSIS / EXHAUST BRAKE ASSEMBLY VACUUM CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

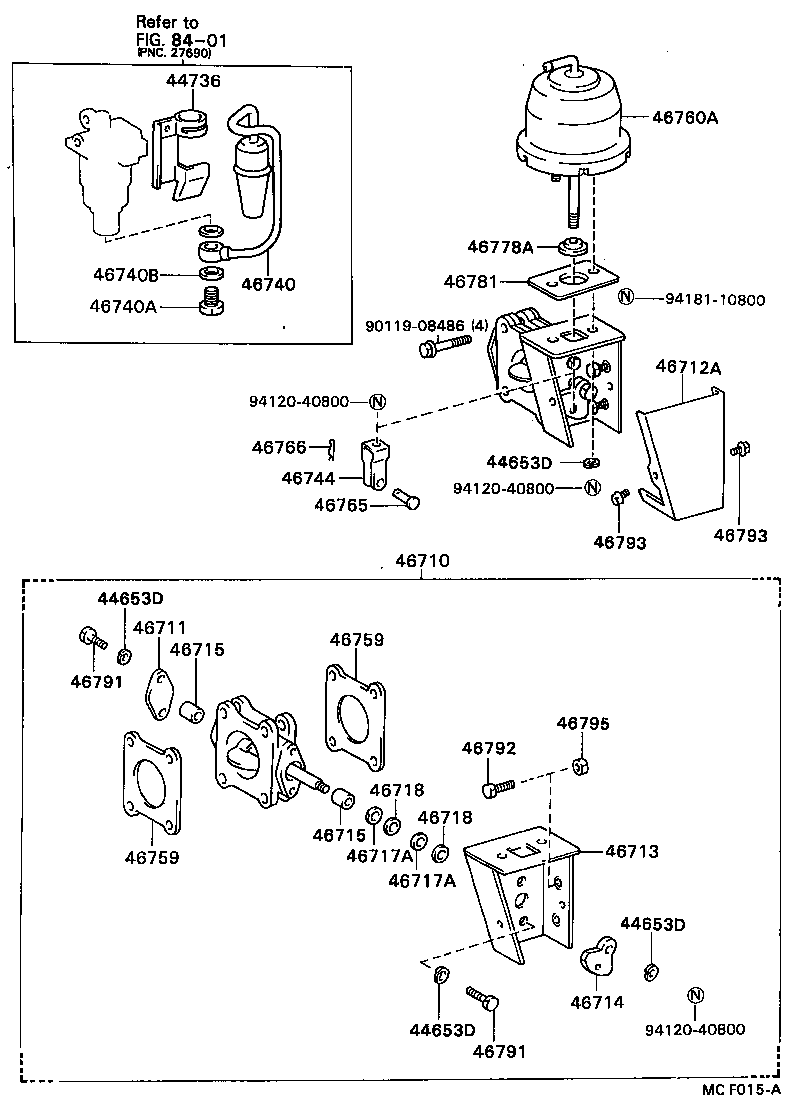

EXHAUST BRAKE ASSEMBLY VACUUM CYLINDER

(8708- )

DYNA | EXHAUST BRAKE ASSEMBLY VACUUM CYLINDER 44653D - WASHER, EXHAUST VALVE COVER 44653D - WASHER, EXHAUST VALVE COVER 44653D - WASHER, EXHAUST VALVE COVER 44653D - WASHER, EXHAUST VALVE COVER 44736 - BRACKET, AIR CLEANER 46710 - VALVE ASSY, EXHAUST BRAKE 46711 - COVER, EXHAUST VALVE 46712A - COVER, EXHAUST BRAKE BRACKET 46713 - BRACKET, EXHAUST VALVE 46714 - LEVER, EXHAUST VALVE 46715 - BUSH, EXHAUST VALVE, NO.1 46715 - BUSH, EXHAUST VALVE, NO.1 46717A - RING, EXHAUST VALVE SEAL, NO.1 46717A - RING, EXHAUST VALVE SEAL, NO.1 46718 - RING, EXHAUST VALVE SEAL, NO.2 46718 - RING, EXHAUST VALVE SEAL, NO.2 46740 - CLEANER ASSY, EXHAUST RETARDER 46740A - BOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY) 46740B - GASKET(FOR EXHAUST BRAKE CLEANER ASSY) 46744 - CLEVIS, EXHAUST BRAKE ROD CLEVIS 46759 - GASKET, EXHAUST RETARDER 46759 - GASKET, EXHAUST RETARDER 46760A - CHAMBER ASSY, EXHAUST BRAKE 46765 - PIN, VACUUM CYLINDER CLEVIS 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP 46778A - BEARING, EXHAUST BRAKE CHAMBER ROD 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 46791 - BOLT, EXHAUST VALVE COVER 46791 - BOLT, EXHAUST VALVE COVER 46792 - BOLT, EXHAUST VALVE STOPPER 46793 - BOLT, EXHAUST VALVE LINK COVER 46793 - BOLT, EXHAUST VALVE LINK COVER 46795 - NUT, EXHAUST VALVE BRACKET ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
