TOYOTA DYNA YU81R-MDDT / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

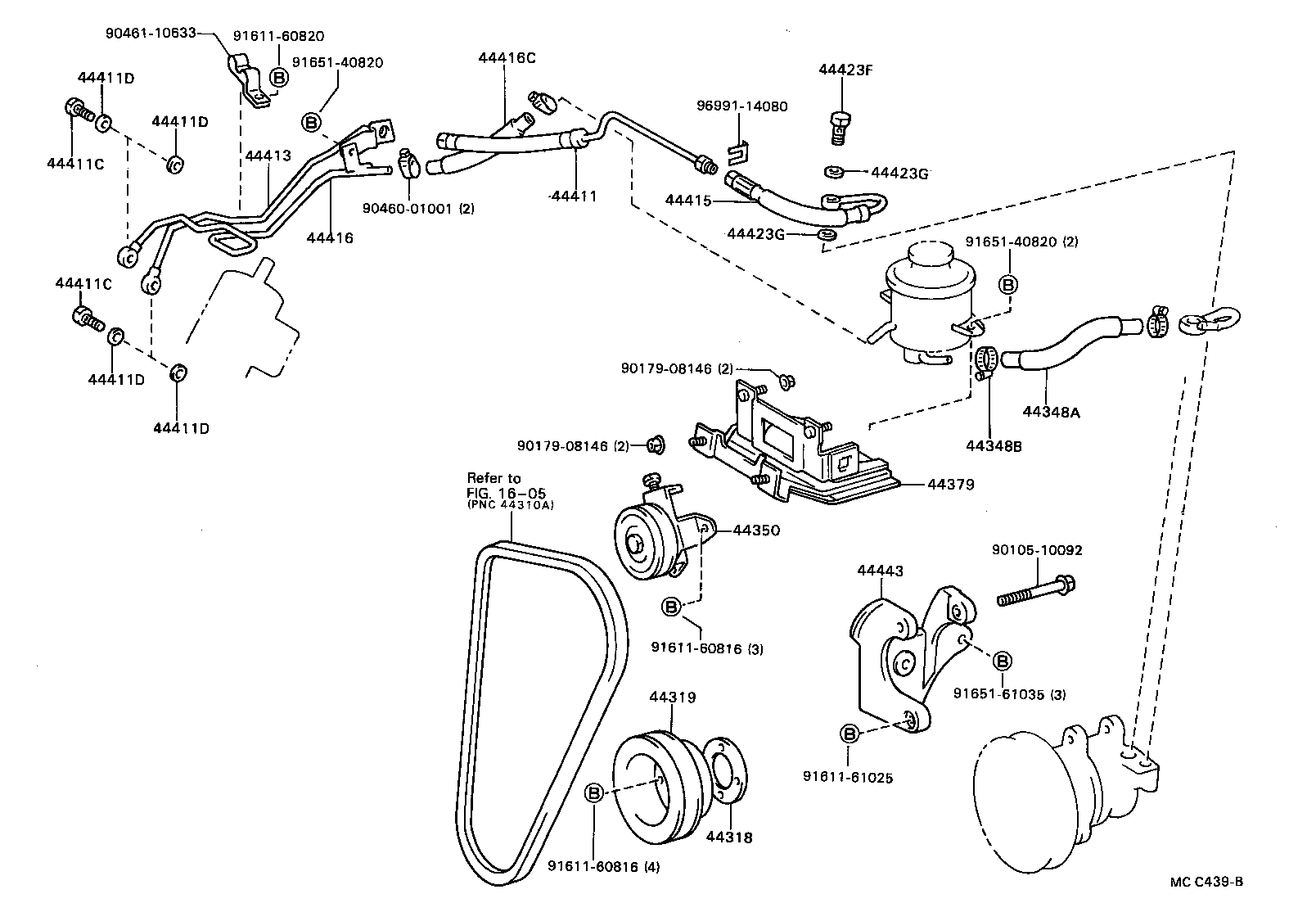

POWER STEERING TUBE

(8508- )YU60,62,8#..RHD..ARL,GEN

 DYNA |  POWER STEERING TUBE ** Refer Fig 44318 - SPACER, VANE PUMP DRIVE PULLEY 44319 - PULLEY, VANE PUMP DRIVE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44350 - PULLEY ASSY, POWER STEERING IDLE 44379 - BRACKET, OIL RESERVOIR, NO.2 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44413 - TUBE, PRESSURE FEED, NO.1 44415 - HOSE, PRESSURE FEED, NO.2 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) 44423F - BOLT, UNION 44423G - GASKET, UNION BOLT 44423G - GASKET, UNION BOLT 44443 - BRACKET, PUMP  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
