TOYOTA DYNA150 LY60L-MDBTW / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

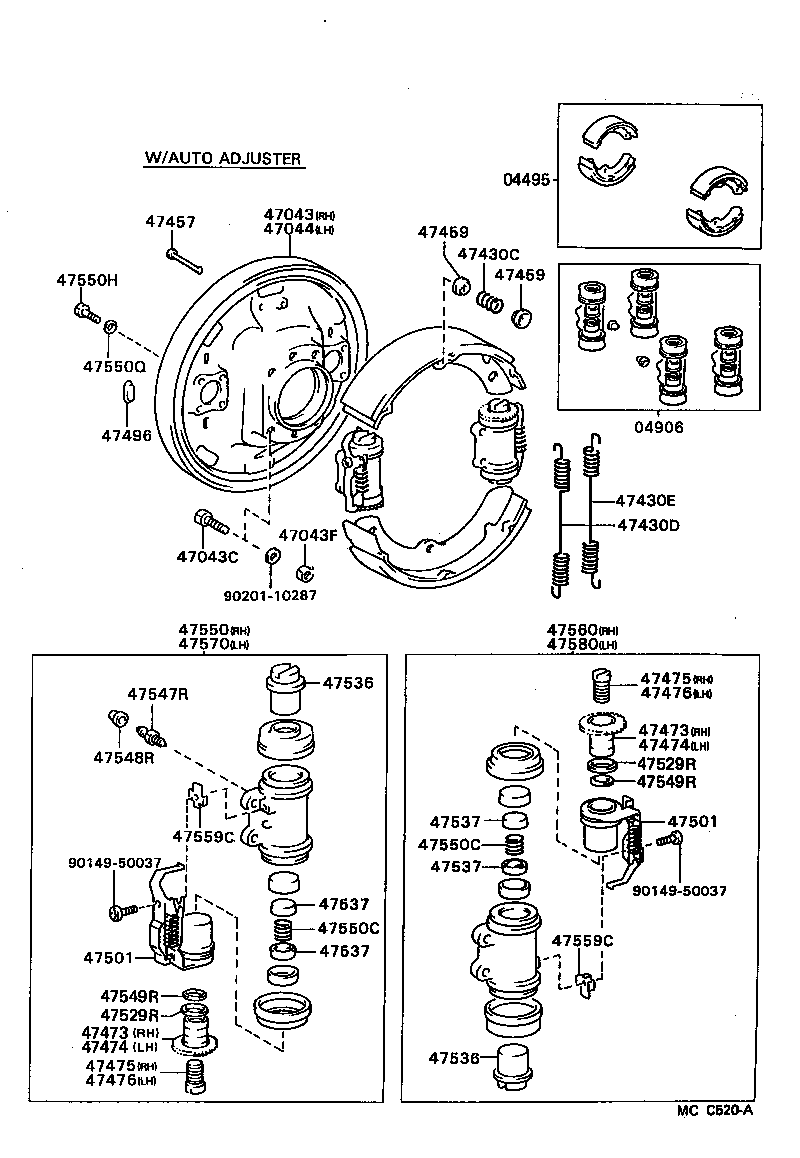

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(8508- )EUR

 DYNA150 |  REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE) 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE) 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47501 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER 47501 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47550H - BOLT(FOR REAR WHEEL CYLINDER) 47550Q - WASHER(FOR REAR WHEEL CYLINDER) 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)  ** Std Part  ** Std Part  ** Std Part
