TOYOTA HIACE VAN COMUTER LH71RB-QRQ / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(8401-8508)LH71

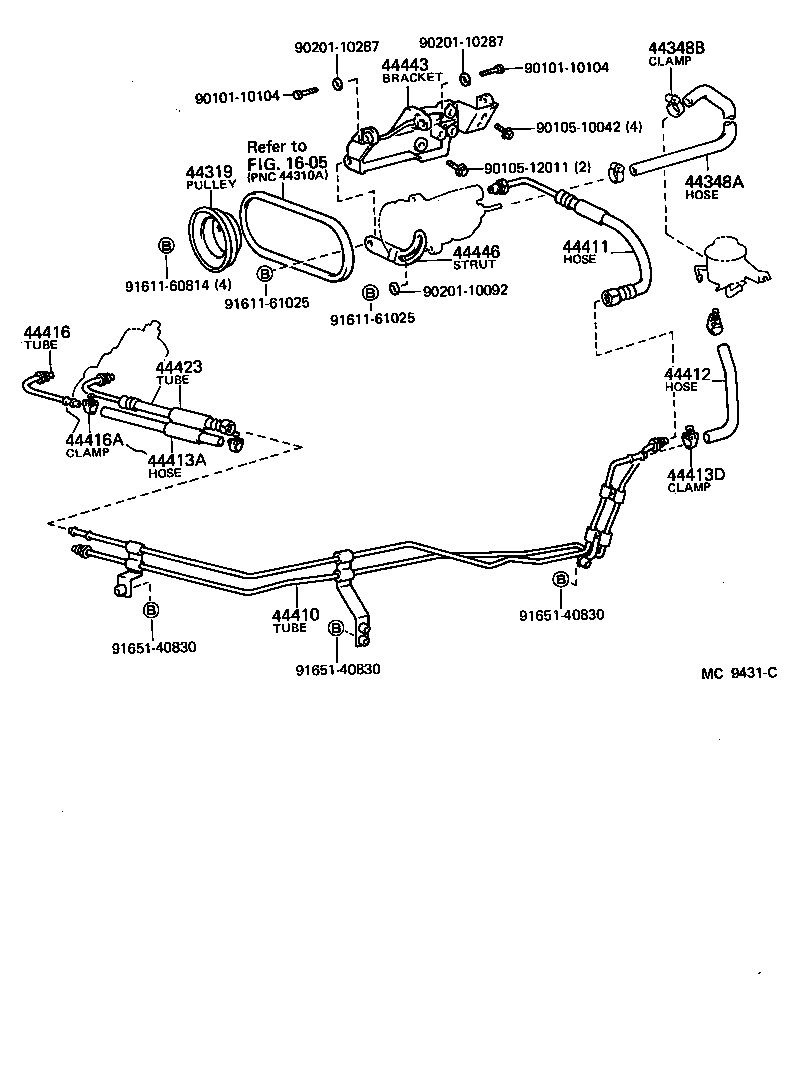

 HIACE VAN COMUTER |  POWER STEERING TUBE ** Refer Fig 44319 - PULLEY, VANE PUMP DRIVE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44410 - TUBE ASSY, PRESSURE FEED 44411 - HOSE, PRESSURE FEED 44412 - HOSE, RETURN 44413A - HOSE(FOR RETURN TUBE OUTLET) 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44416A - CLAMP(FOR RETURN HOSE) 44423 - TUBE, OIL PUMP TO GEAR BOX 44443 - BRACKET, PUMP 44446 - STRUT, ADJUSTING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
