TOYOTA CELICA AA63L-BLMXFW / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

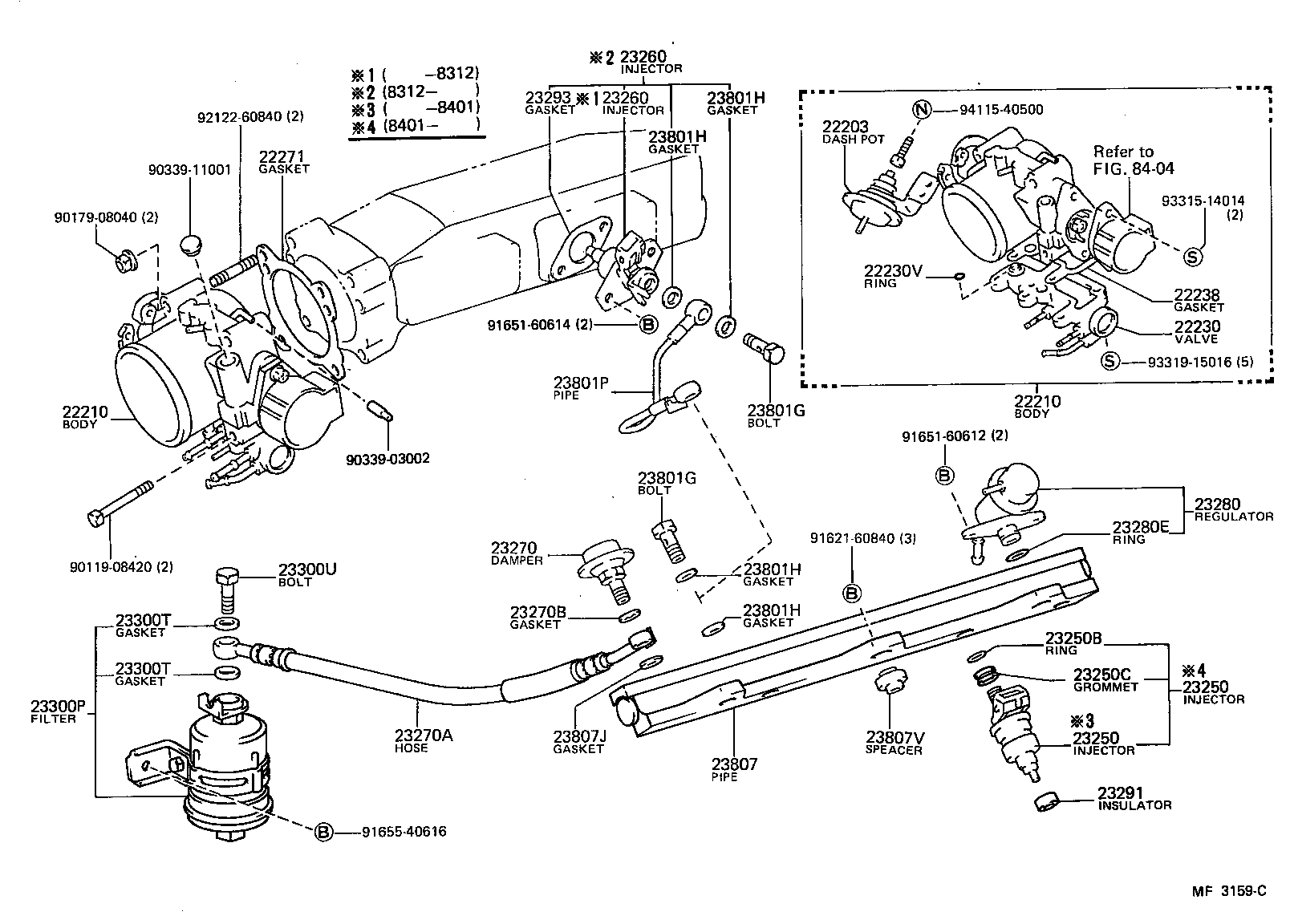

FUEL INJECTION SYSTEM

(8308-8507)4AGE

 CELICA |  FUEL INJECTION SYSTEM 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22230 - VALVE ASSY, AUXILIARY AIR 22230V - RING, O(FOR AUXILIARY AIR VALVE) 22238 - GASKET, AUXILIARY AIR VALVE 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23260 - INJECTOR ASSY, COLD START FUEL 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270A - HOSE(FOR PULSATION DAMPER) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807J - GASKET, PIPE FUEL DELIVARY INLET 23807V - SPACER, NO.1(FOR DELIVERY PIPE) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
