TOYOTA CELICA AA63L-BLMXFW / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

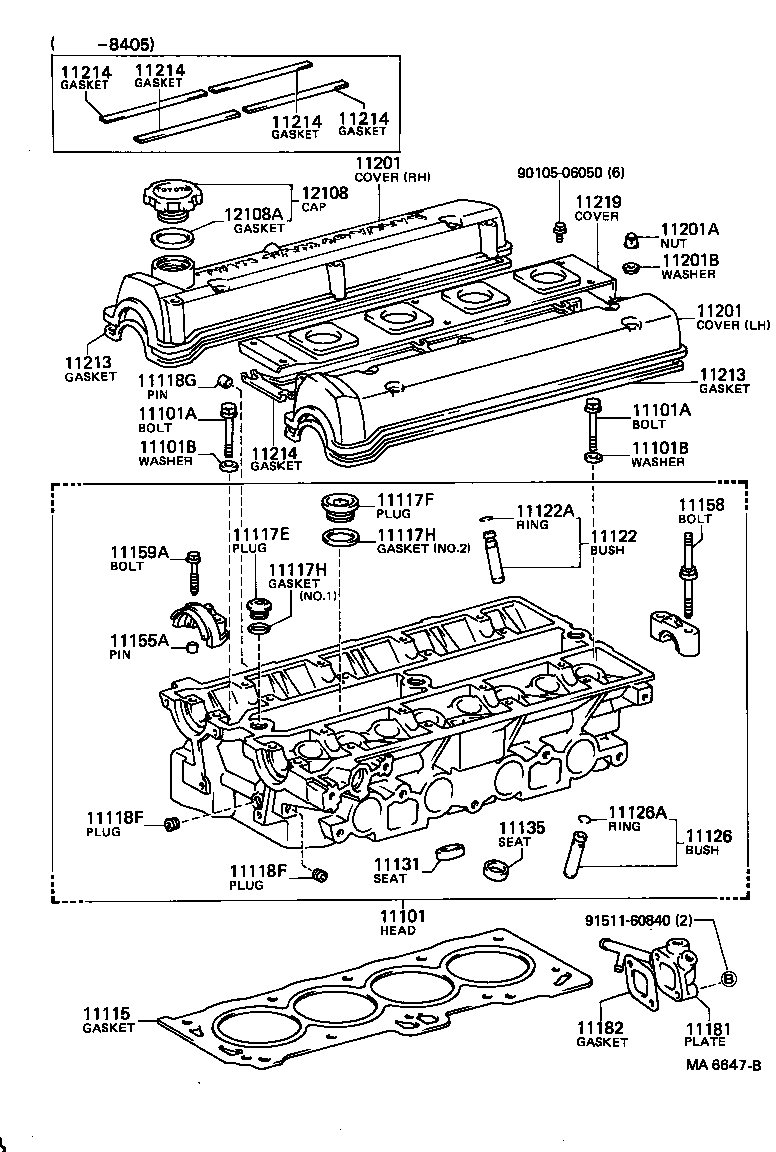

CYLINDER HEAD

(8308-8507)4AGE

 CELICA |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11115 - GASKET, CYLINDER HEAD 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 11117H - GASKET(FOR WATER HOLE) 11117H - GASKET(FOR WATER HOLE) 11118F - PLUG, TAPER, NO.1 11118F - PLUG, TAPER, NO.1 11118G - PIN, SLOTTED SPRING, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11126 - BUSH, EXHAUST VALVE GUIDE 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11155A - PIN, RING W/HEAD 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11181 - PLATE, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 11213 - GASKET, CYLINDER HEAD COVER 11214 - GASKET, CYLINDER HEAD COVER, NO.2 11214 - GASKET, CYLINDER HEAD COVER, NO.2 11214 - GASKET, CYLINDER HEAD COVER, NO.2 11214 - GASKET, CYLINDER HEAD COVER, NO.2 11214 - GASKET, CYLINDER HEAD COVER, NO.2 11219 - COVER, CYLINDER HEAD, NO.3 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP)  ** Std Part  ** Std Part
