TOYOTA CRESSIDA GX60L-XEMNE / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

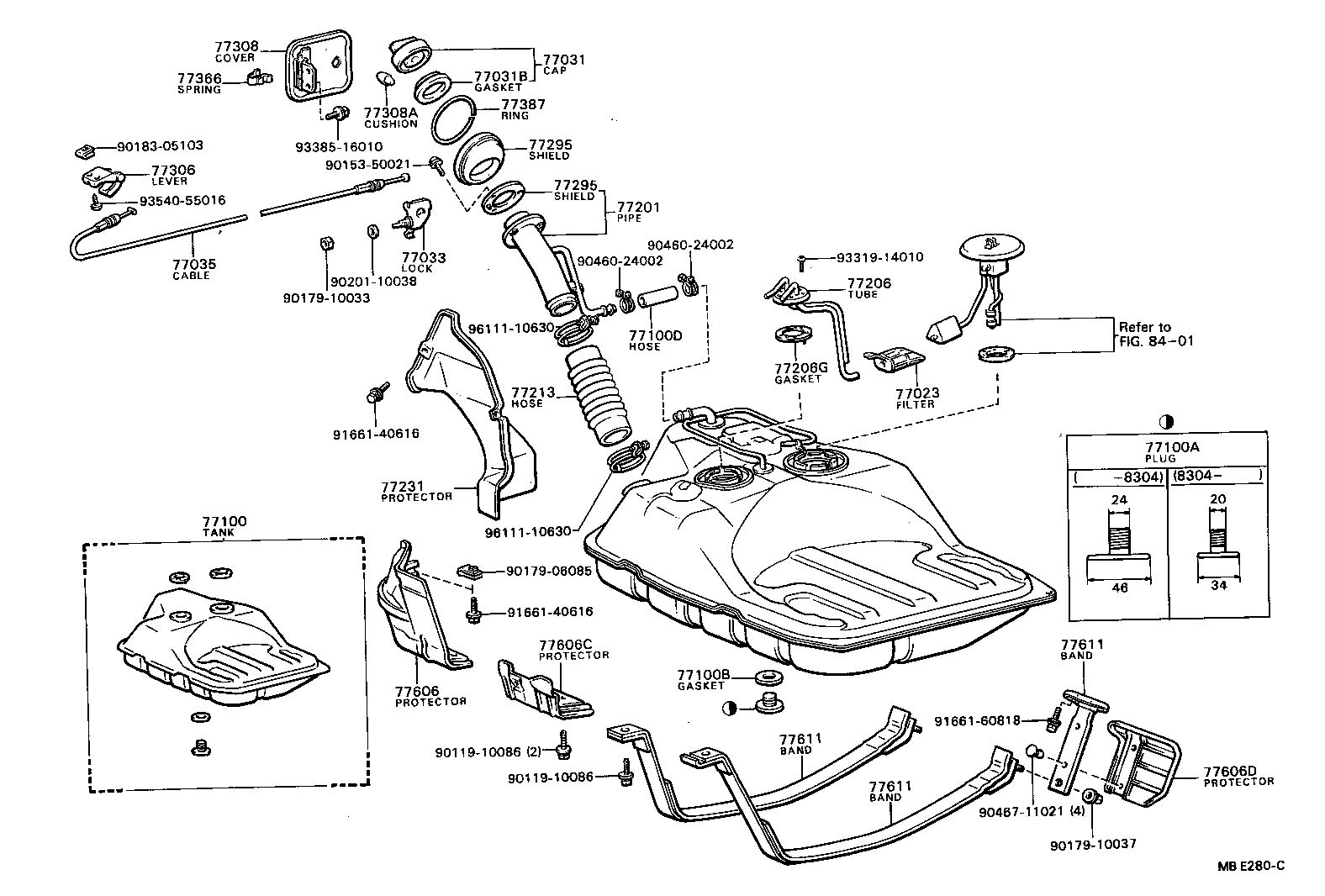

FUEL TANK TUBE

(8009- )SED

 CRESSIDA |  FUEL TANK TUBE 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77033 - LOCK SUB-ASSY, FUEL TANK CAP 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77231 - PROTECTOR, INLET TUBE 77295 - SHIELD, FUEL FILLER PIPE 77295 - SHIELD, FUEL FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77308 - COVER SUB-ASSY, FUEL INLET BOX 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77387 - RING, FUEL INLET BOX 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606C - PROTECTOR, FUEL TANK, NO.2 77606D - PROTECTOR, FUEL TANK, NO.3 77611 - BAND, FUEL TANK 77611 - BAND, FUEL TANK 77611 - BAND, FUEL TANK ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
