TOYOTA STARLET KP62RV-PXKRS / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

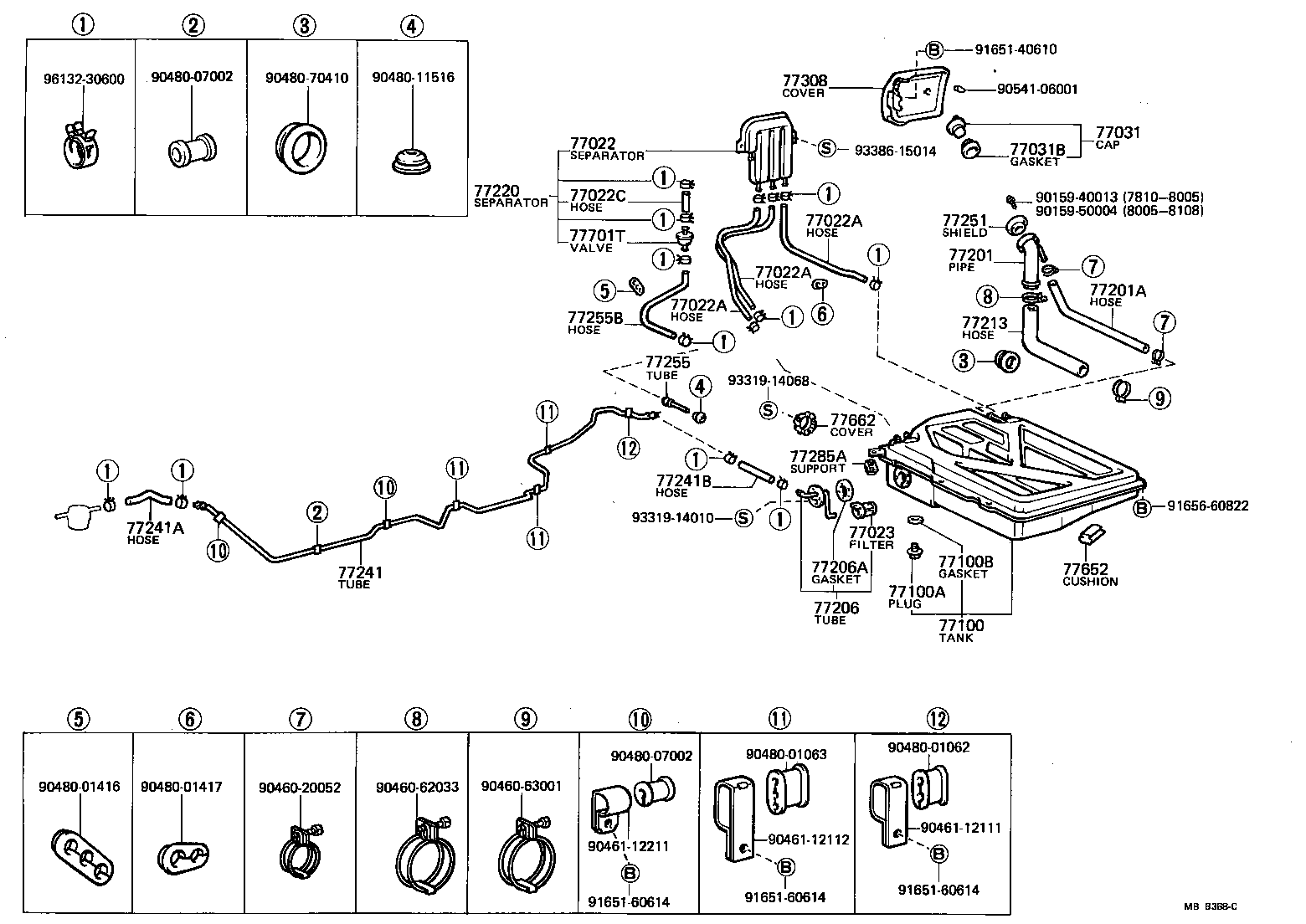

FUEL TANK TUBE

(8005-8108)4D

 STARLET |  FUEL TANK TUBE 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77220 - SEPARATOR ASSY, FUEL EVAPORATIVE & CHECK VALVE 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77251 - SHIELD, FUEL TANK, INLET, NO.1 77255 - TUBE, FUEL EMISSION, NO.2 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE 77308 - COVER SUB-ASSY, FUEL INLET BOX 77652 - CUSHION, FUEL TANK, NO.1 77662 - COVER, FUEL TANK GAGE 77701T - VALVE, CHECK (FOR MAIN FUEL TANK)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
