TOYOTA CELICA TA40L-BCMSBW / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

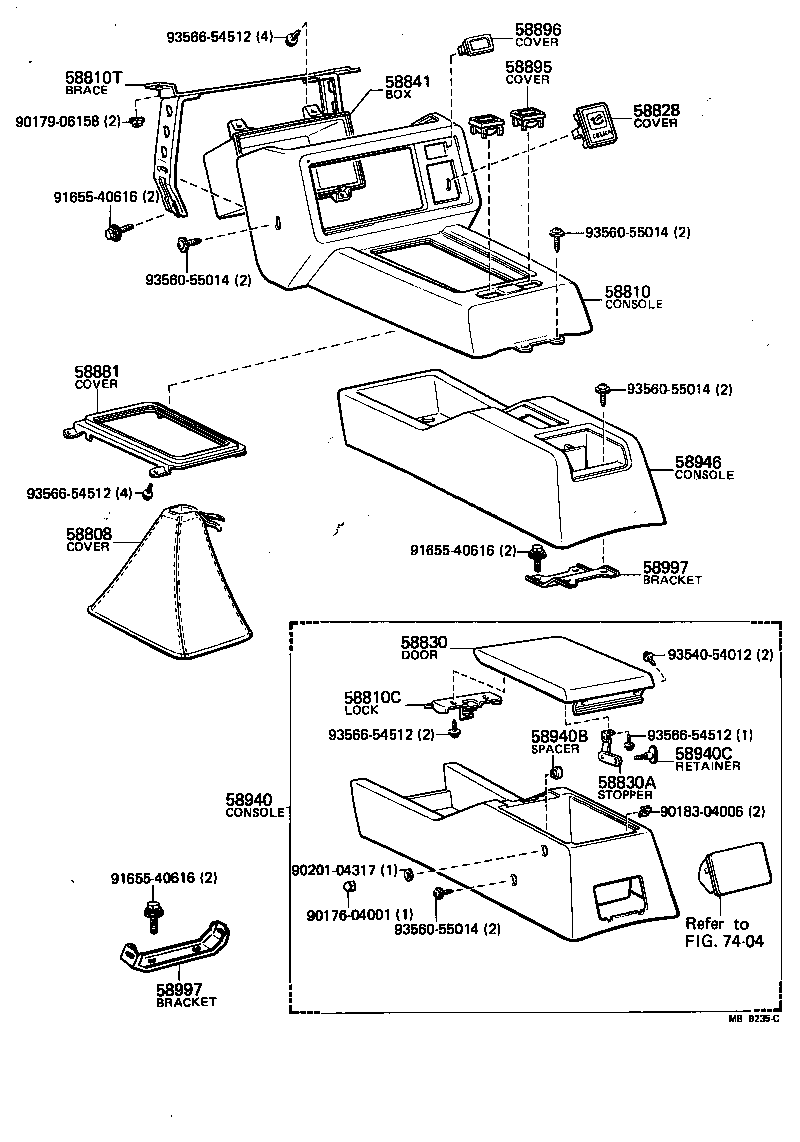

CONSOLE BOX BRACKET

(7908- )

CELICA | CONSOLE BOX BRACKET 58808 - COVER SUB-ASSY, SHIFTING HOLE 58810 - CONSOLE ASSY 58810C - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58810T - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR 58828 - COVER, OK MONITOR OPENING 58830 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58830A - STOPPER,CONSOLE COMPARTMENT DOOR 58841 - BOX, CONSOLE, UPPER 58881 - COVER, SHIFTING HOLE 58895 - COVER, SWITCH HOLE, NO.1 58896 - COVER, SWITCH HOLE, NO.2 58940 - CONSOLE ASSY, REAR 58940B - SPACER,CONSOLE COMPARTMENT DOOR STOPPER 58940C - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER 58946 - CONSOLE BOX, REAR 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
