TOYOTA LAND CRUISER 40 45 55 HJ45RP-KW3 / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

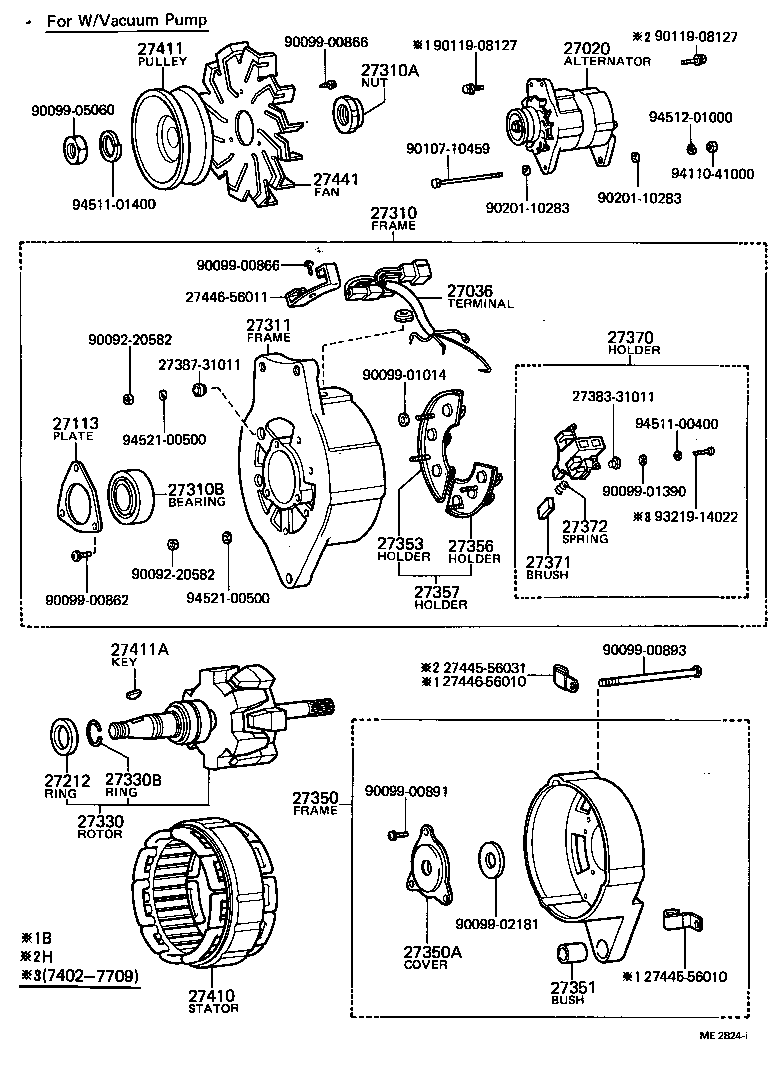

ALTERNATOR

(7402-7709)B ; (7501-7709)H

 LAND CRUISER 40 45 55 |  ALTERNATOR 27020 - ALTERNATOR ASSY 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR 27113 - PLATE, BEARING RETAINER, ALTERNATOR 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) 27311 - FRAME, ALTERNATOR DRIVE END 27330 - ROTOR ASSY, ALTERNATOR 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) 27350 - FRAME ASSY, RECTIFIER END 27350A - COVER, REAR END FRAME(FOR VACUUM PUMP OIL SEAL) 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR 27357 - HOLDER, ALTERNATOR, W/RECTIFIER 27370 - HOLDER ASSY, ALTERNATOR BRUSH 27371 - BRUSH, ALTERNATOR 27372 - SPRING, ALTERNATOR BRUSH  ** Std Part  ** Std Part 27410 - STATOR ASSY, ALTERNATOR 27411 - PULLEY, ALTERNATOR 27411A - KEY(FOR ALTERNATOR PULLEY) 27441 - FAN, ALTERNATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
