TOYOTA CARINA TA14L-HD / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

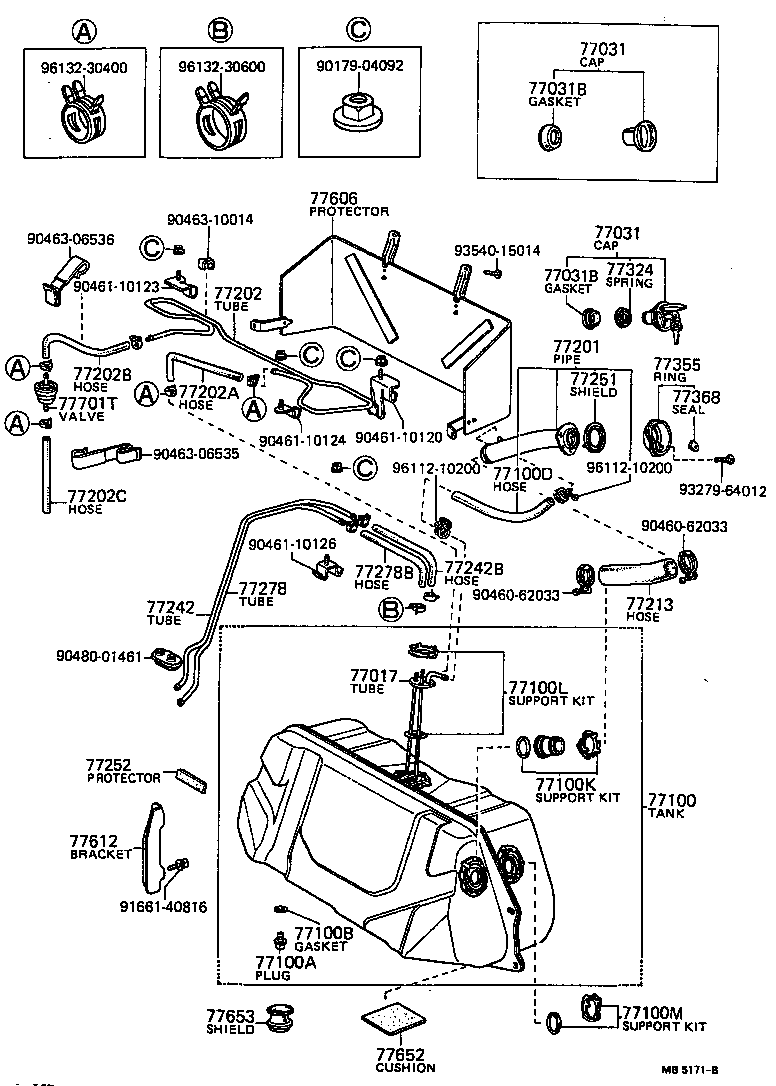

FUEL TANK TUBE

(7510-7707)

CARINA | FUEL TANK TUBE 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT 77031 - CAP ASSY, FUEL TANK 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77031B - GASKET (FOR FUEL TANK CAP) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77100K - SUPPORT KIT, FUEL TANK INLET 77100L - SUPPORT KIT, FUEL TANK TUBE 77100M - SUPPORT KIT, FUEL TANK GAGE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77202 - TUBE SUB-ASSY, BREATHER 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) 77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77242 - TUBE, FUEL MAIN, NO.2 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77251 - SHIELD, FUEL TANK, INLET, NO.1 77252 - PROTECTOR, FUEL TUBE 77278 - TUBE, FUEL RETURN, NO.2 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77324 - SPRING, FUEL TANK CAP 77355 - RING, INLET BOX 77368 - SEAL, INLET BOX 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77612 - BRACKET SUB-ASSY, FUEL TANK 77652 - CUSHION, FUEL TANK, NO.1 77653 - SHIELD, FUEL TANK DRAIN PLUG 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
