TOYOTA HILUX RN25-KR / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

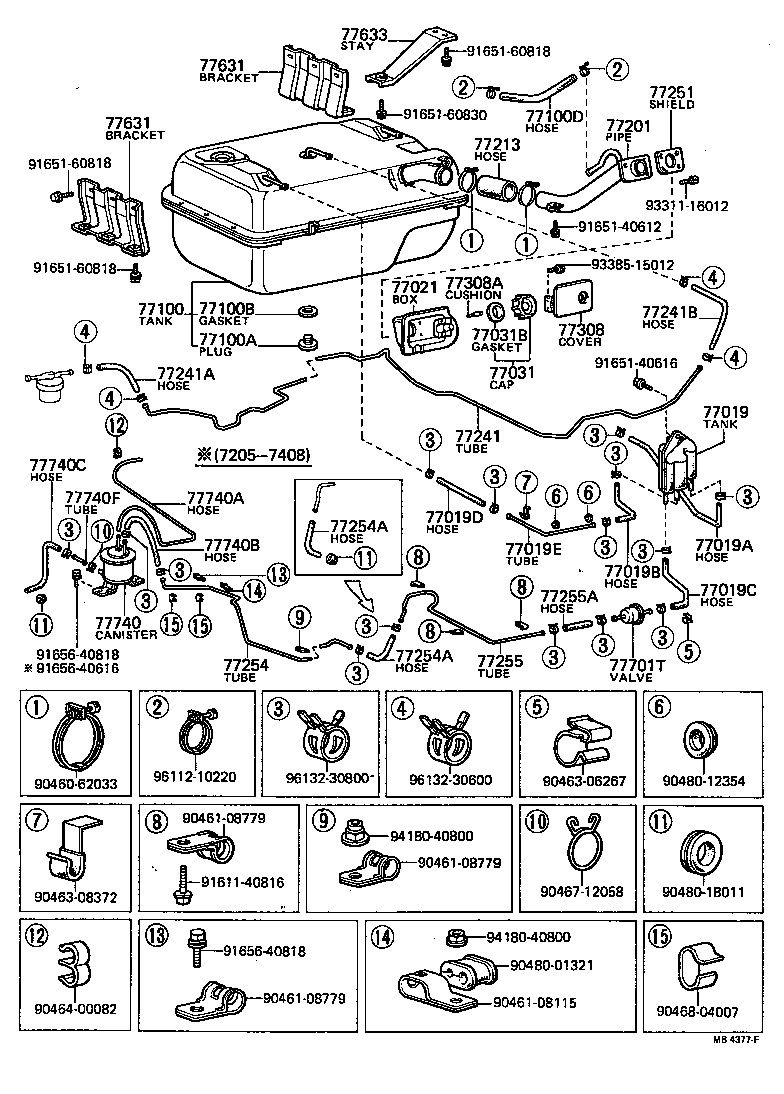

FUEL TANK TUBE

(7205-7511)RN20,25

 HILUX |  FUEL TANK TUBE 77019 - TANK SUB-ASSY, FUEL EXPANSION 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) 77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK) 77019C - HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK) 77019D - HOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK) 77019E - TUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK) 77021 - BOX ASSY, FUEL TANK INLET 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77213 - HOSE, FUEL TANK SUB INLET 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77251 - SHIELD, FUEL TANK, INLET, NO.1 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255 - TUBE, FUEL EMISSION, NO.2 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) 77308 - COVER SUB-ASSY, FUEL INLET BOX 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77631 - BRACKET, FUEL TANK, NO.1 77631 - BRACKET, FUEL TANK, NO.1 77633 - STAY, FUEL TANK 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
