TOYOTA LAND CRUISER 40 45 55 FJ40L- / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

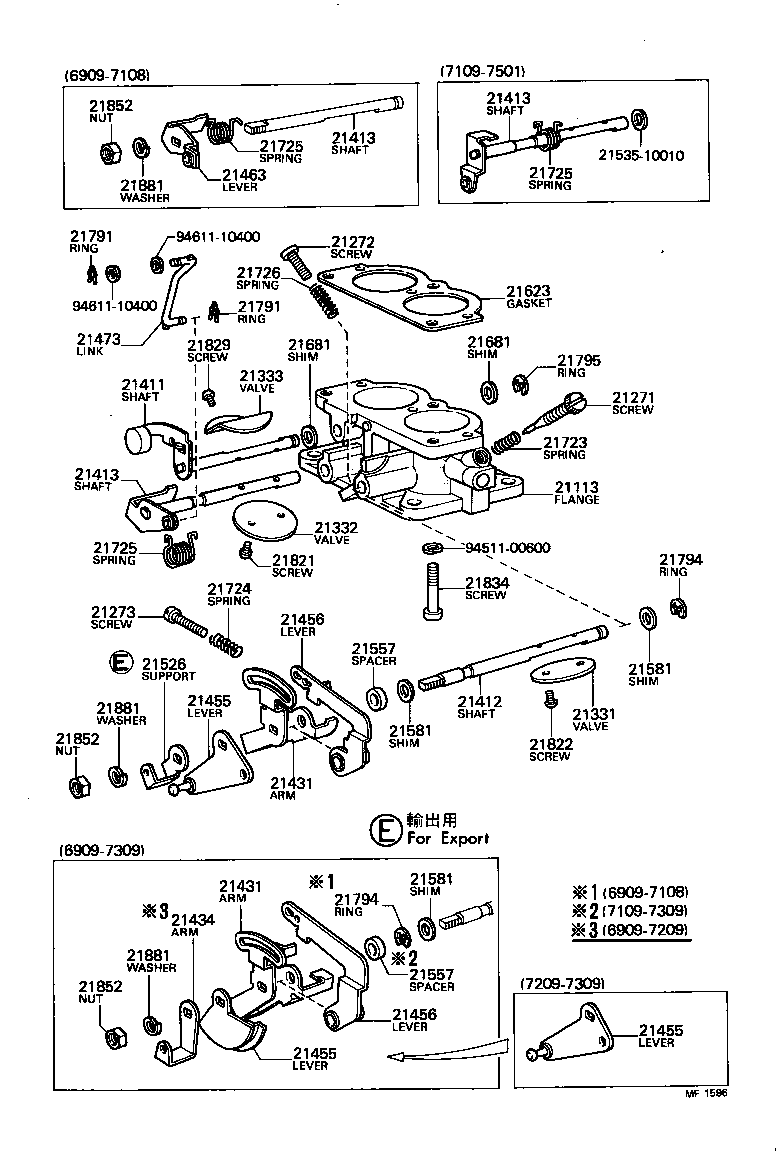

CARBURETOR

(6909-7501)F

LAND CRUISER 40 45 55 | CARBURETOR 21113 - FLANGE, CARBURETOR 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21331 - VALVE, 1ST THROTTLE 21332 - VALVE, 2ND THROTTLE 21333 - VALVE, HIGH SPEED 21411 - SHAFT, HIGH SPEED 21412 - SHAFT, 1ST THROTTLE 21413 - SHAFT, 2ND THROTTLE 21413 - SHAFT, 2ND THROTTLE 21413 - SHAFT, 2ND THROTTLE 21431 - ARM, 1ST THROTTLE SHAFT 21431 - ARM, 1ST THROTTLE SHAFT 21434 - ARM, BACK SPRING 21455 - LEVER, THROTTLE 21455 - LEVER, THROTTLE 21455 - LEVER, THROTTLE 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 21463 - LEVER, 2ND THROTTLE 21473 - LINK, THROTTLE SHAFT 21526 - SUPPORT, BACK SPRING ** Std Part 21557 - SPACER(FOR 1ST IDLE CAM) 21557 - SPACER(FOR 1ST IDLE CAM) 21581 - SHIM, 1ST THROTTLE SHAFT 21581 - SHIM, 1ST THROTTLE SHAFT 21581 - SHIM, 1ST THROTTLE SHAFT 21623 - GASKET, BODY FLANGE 21681 - SHIM(FOR HIGH SPEED SHAFT) 21681 - SHIM(FOR HIGH SPEED SHAFT) 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21725 - SPRING, 2ND THROTTLE BACK 21725 - SPRING, 2ND THROTTLE BACK 21725 - SPRING, 2ND THROTTLE BACK 21726 - SPRING, 1ST IDLE ADJUSTING 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) 21821 - SCREW, 2ND THROTTLE VALVE SET 21822 - SCREW, 1ST THROTTLE VALVE SET 21829 - SCREW, HIGH SPEED VALVE SET 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) ** Std Part ** Std Part ** Std Part
