LEXUS RX350 450H GGL15L-CWZGKA / POWERTRAIN-CHASSIS / THROTTLE LINK VALVE LEVER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

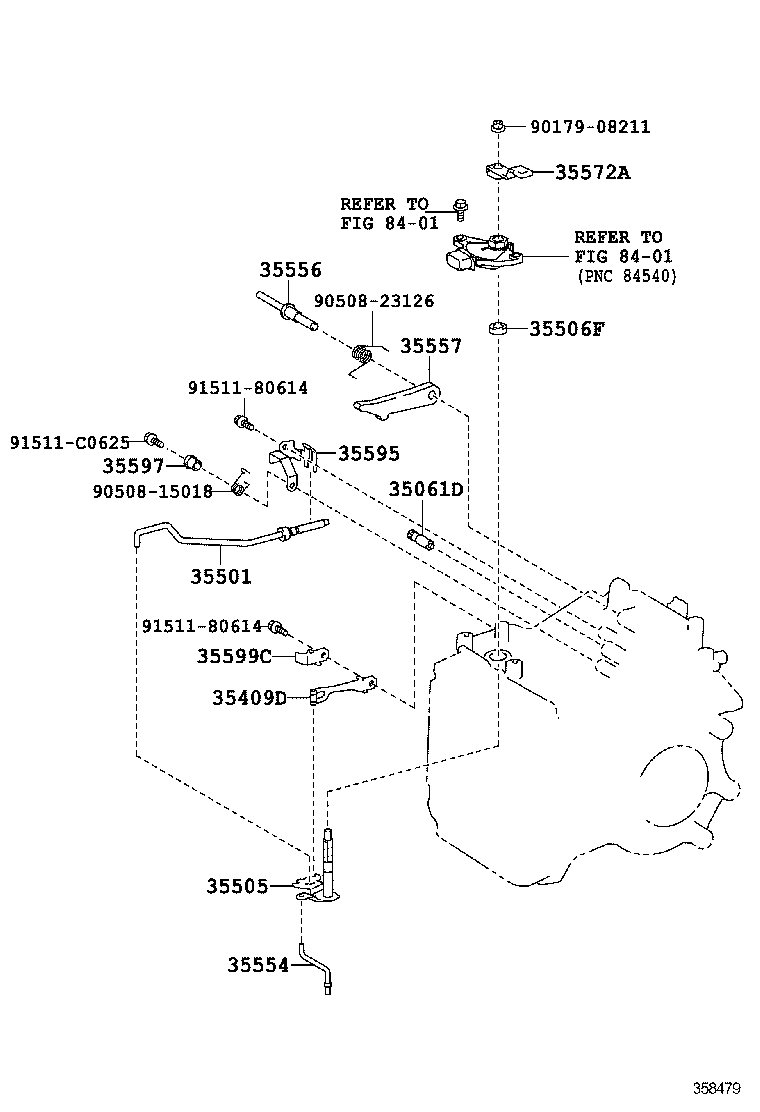

THROTTLE LINK VALVE LEVER ATM

U880F (1207- )8FC

RX350 450H | THROTTLE LINK VALVE LEVER ATM 35061D - PIN SUB-ASSY, PARKING LOCK 35409D - SPRING SUB-ASSY, MANUAL DETENT 35501 - ROD SUB-ASSY, PARKING LOCK 35505 - LEVER SUB-ASSY, MANUAL VALVE 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35554 - ROD, MANUAL VALVE CONNECTING 35556 - SHAFT, PARKING LOCK PAWL 35557 - PAWL, PARKING LOCK 35572A - LEVER, TRANSMISSION CONTROL SHAFT 35595 - BRACKET, PARKING LOCK PAWL 35597 - SLEEVE, SPRING GUIDE 35599C - COVER, MANUAL DETENT SPRING ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
