LEXUS RX350 450H GGL15L-CWZGKA / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

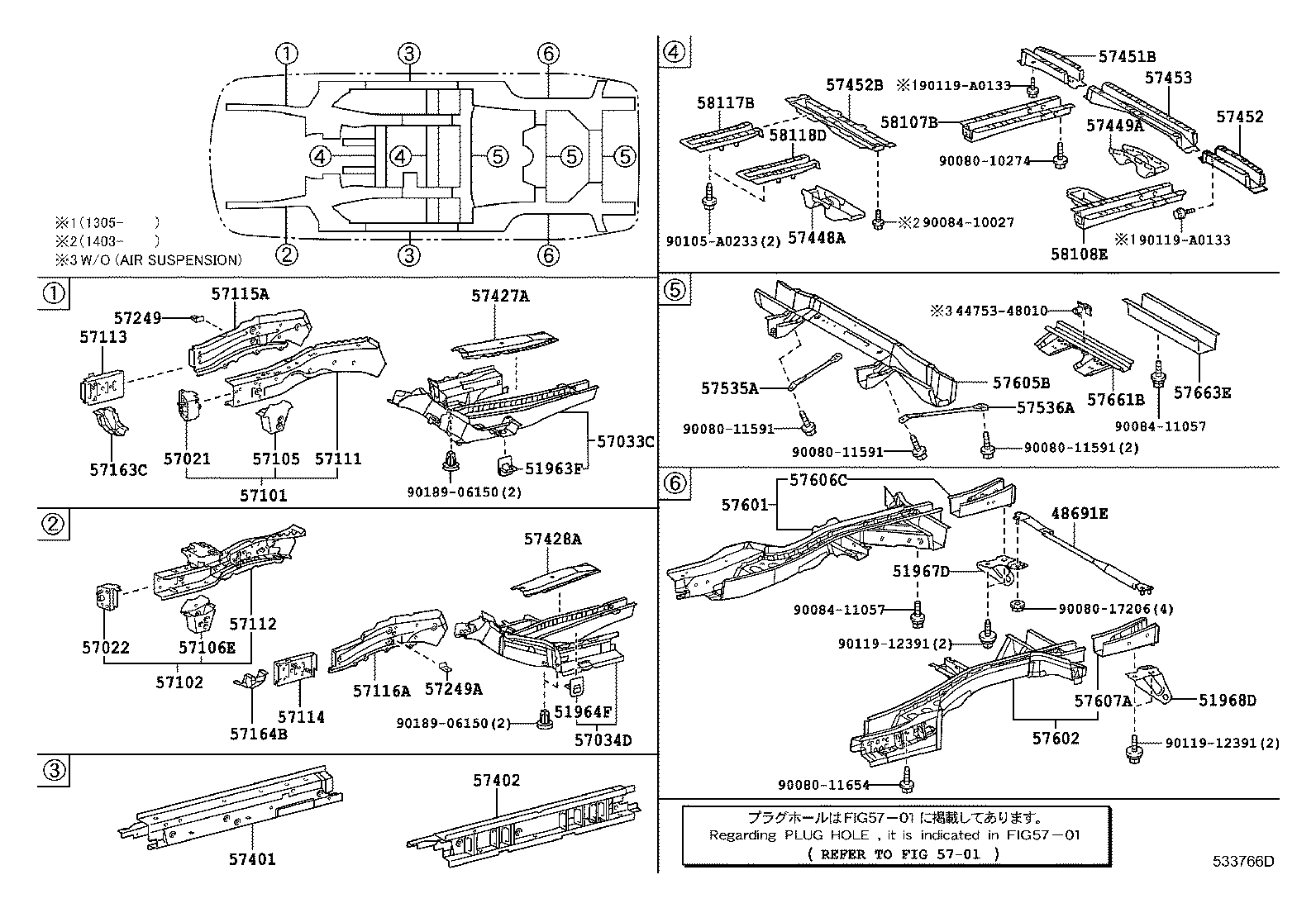

FLOOR SIDE MEMBER

(1207- )8FC

RX350 450H | FLOOR SIDE MEMBER ** Std Part 48691E - DAMPER, SUSPENSION TOWER 51963F - HOOK, TRANSPORT 51964F - HOOK, TRANSPORT, LH 51967D - HOOK SUB-ASSY,REAR 51968D - HOOK, TRANSPORT, REAR LH ** Refer Fig 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH 57249 - BRACKET, FLEXIBLE HOSE, NO.1 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH 57448A - BRACKET, DIFF LOCK LEVER MOUNT, NO.1 57449A - BRACKET, DIFF LOCK LEVER MOUNT, NO.2 57451B - MEMBER, FRONT FLOOR CROSS, RH 57452 - MEMBER, FRONT FLOOR CROSS, LH 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 57535A - BRACE, FRONT FLOOR, RH 57536A - BRACE, FRONT FLOOR, LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 57661B - MEMBER, REAR FLOOR CROSS, FRONT 57663E - MEMBER, REAR FLOOR CROSS, CENTER 58107B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH 58108E - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH 58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH 58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
