LEXUS RX400H MHU38L-AWXGKA / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

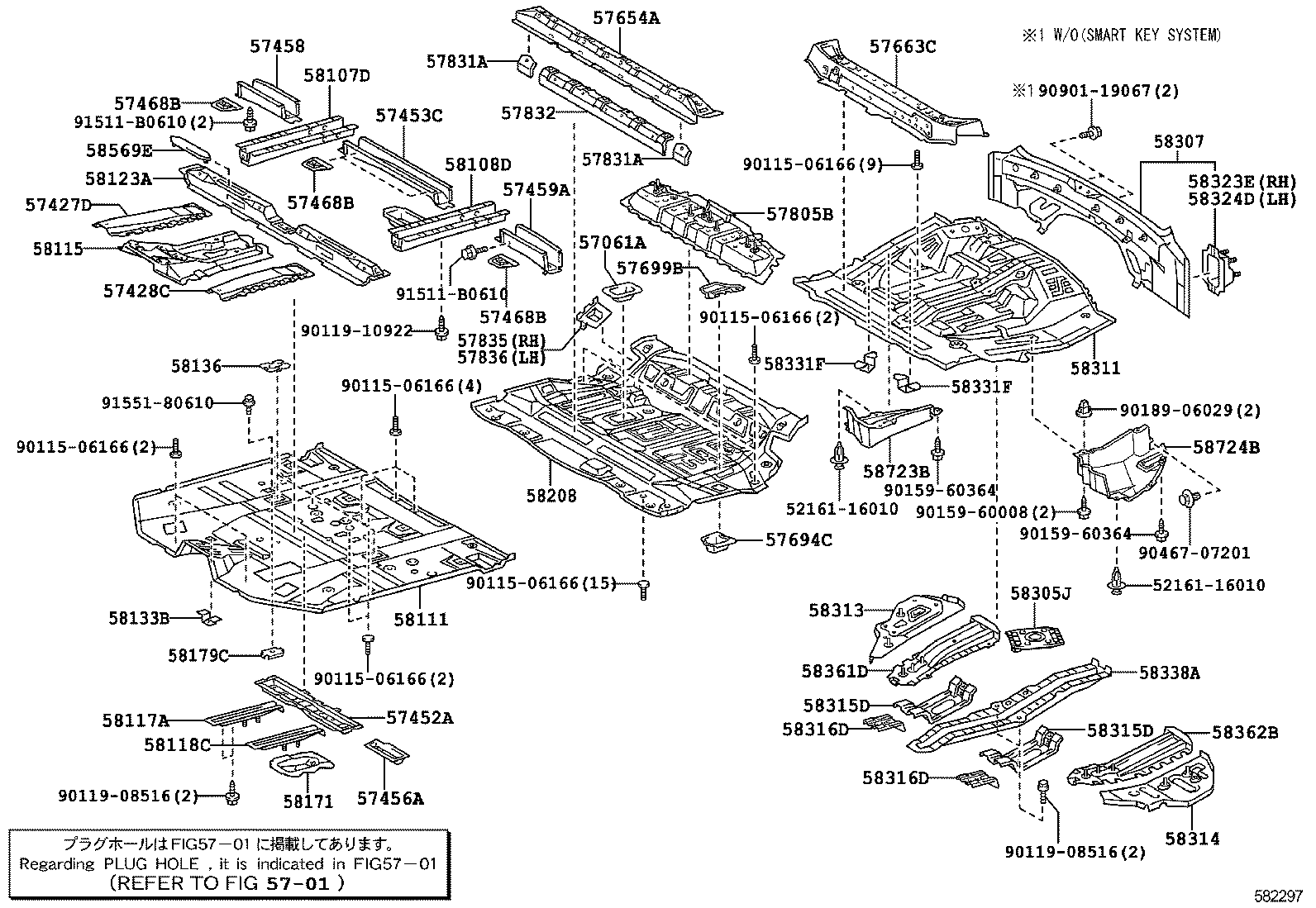

FLOOR PAN LOWER BACK PANEL

(0503-0703)

RX400H | FLOOR PAN LOWER BACK PANEL ** Std Part ** Std Part ** Refer Fig 57061A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH 57456A - GUSSET, FRONT FLOOR CROSSMEMBER, LH 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 57459A - MEMBER, FRONT FLOOR CROSS, NO.2 57468B - BRACKET, FRONT SEAT, REAR 57468B - BRACKET, FRONT SEAT, REAR 57468B - BRACKET, FRONT SEAT, REAR 57654A - MEMBER, REAR FLOOR CROSS, NO.3 57663C - MEMBER, REAR FLOOR CROSS, CENTER 57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH 57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH 58111 - PAN, FRONT FLOOR 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH 58123A - SUPPORT, SHIFT & SELECT LEVER 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 58136 - COVER, FRONT FLOOR HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58179C - BRACKET, CLAMP FLOOR 58208 - PAN, CENTER FLOOR 58305J - BRACKET, SPARE WHEEL CARRIER 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58315D - EXTENSION, REAR FLOOR PAN, RH 58315D - EXTENSION, REAR FLOOR PAN, RH 58316D - EXTENSION, REAR FLOOR PAN, LH 58316D - EXTENSION, REAR FLOOR PAN, LH 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH 58569E - COVER, FRONT FLOOR CAUTION PLATE 58723B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 58724B - PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
