LEXUS GS460 430 350 URS190-BEZQH / POWERTRAIN-CHASSIS / FRONT AXLE ARM STEERING KNUCKLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

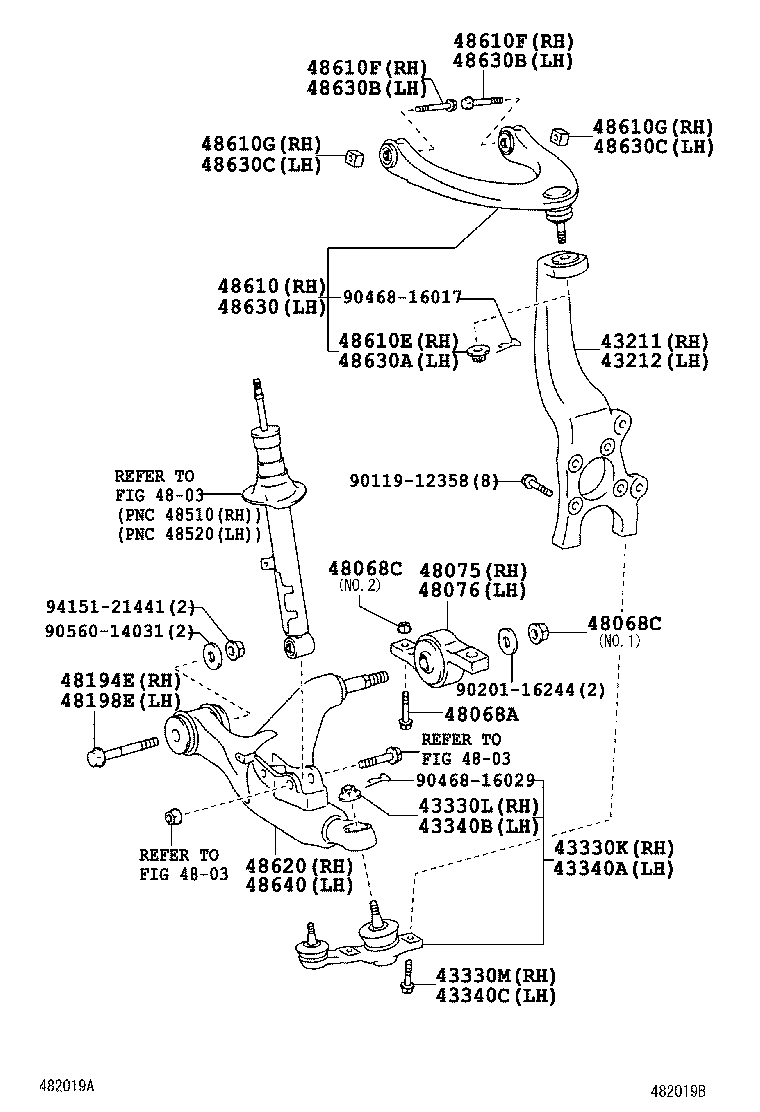

FRONT AXLE ARM STEERING KNUCKLE

(0508- )GRS191,URS190,UZS190

GS460 430 350 | FRONT AXLE ARM STEERING KNUCKLE 43211 - KNUCKLE, STEERING, RH 43212 - KNUCKLE, STEERING, LH 43330K - JOINT ASSY, LOWER BALL, FRONT RH 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) 43340A - JOINT ASSY, LOWER BALL, FRONT LH 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) ** Refer Fig ** Refer Fig ** Refer Fig 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) 48075 - BRACKET SUB-ASSY, LWR ARM, NO,1 48076 - BRACKET SUB-ASSY, LWR ARM, NO.2 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
