LEXUS IS250 350 300H GSE31R-AEZLHQ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

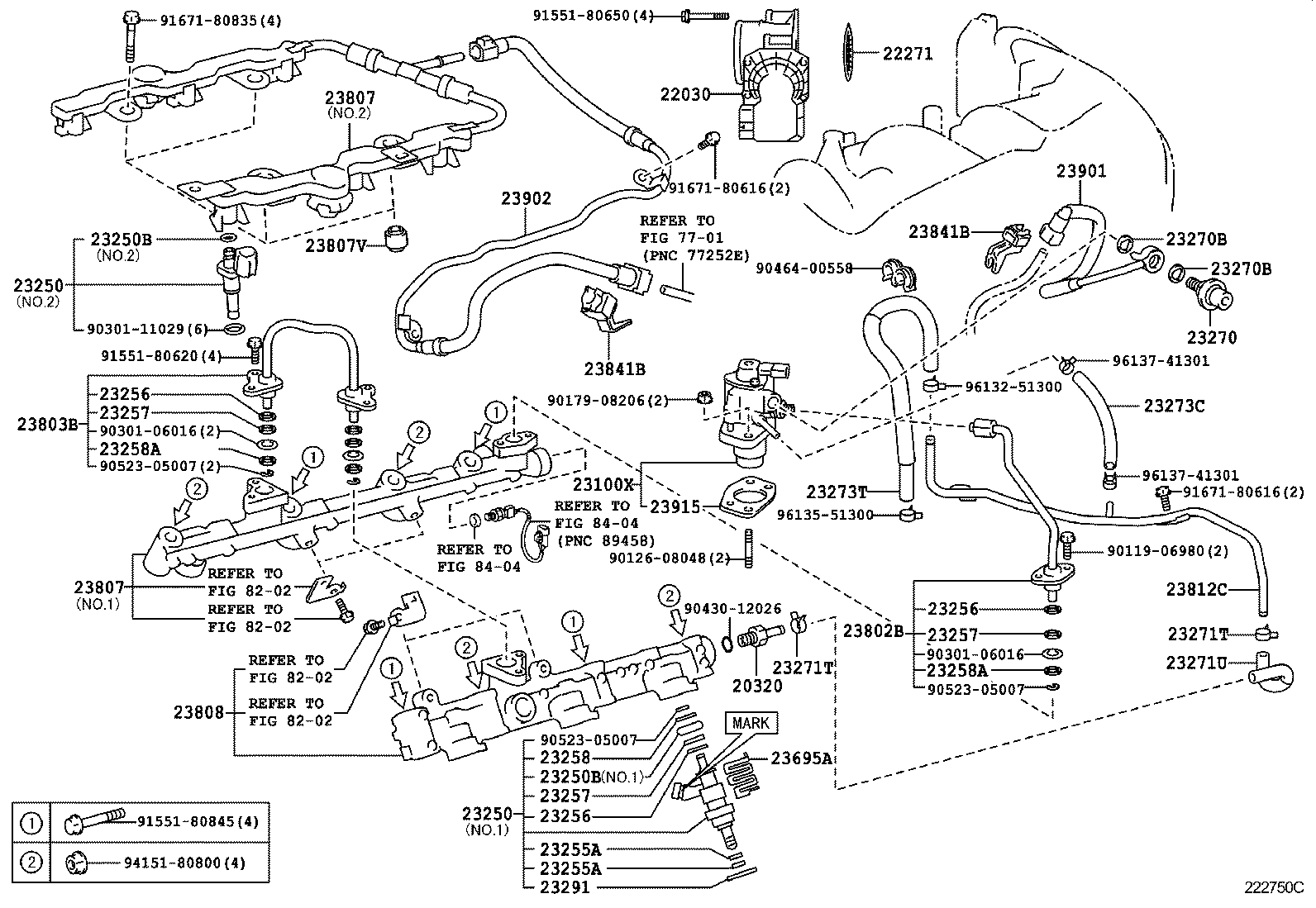

FUEL INJECTION SYSTEM

(1304- )2GRFSE

 IS250 350 300H |  FUEL INJECTION SYSTEM 20320 - VALVE ASSY, FUEL RELIEF 22030 - BODY ASSY, THROTTLE W/MOTOR 22271 - GASKET, THROTTLE BODY 23100X - PUMP ASSY, FUEL 23250 - INJECTOR ASSY, FUEL 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23255A - SEAL, FUEL INJECTOR 23255A - SEAL, FUEL INJECTOR 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 23258A - RING, FUEL PIPE, NO.3 23258A - RING, FUEL PIPE, NO.3 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23271T - CLAMP OR CLIP(FOR FUEL HOSE) 23271T - CLAMP OR CLIP(FOR FUEL HOSE) 23271U - HOSE, FUEL, NO.1 23273C - HOSE, FUEL, NO.2 23273T - HOSE, FUEL, NO.3 23291 - INSULATOR, INJECTOR VIBRATION 23695A - CLAMP, NOZZLE HOLDER 23802B - PIPE SUB-ASSY, FUEL, NO.2 23803B - PIPE SUB-ASSY, FUEL, NO.3 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 23812C - PIPE, FUEL, NO.2 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23901 - TUBE SUB-ASSY, FUEL 23902 - TUBE SUB-ASSY, FUEL 23915 - INSULATOR, FUEL PUMP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
