LEXUS IS250 350 300H GSE30R-AETLHQ / ELECTRICAL / ELECTRONIC FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ELECTRONIC FUEL INJECTION SYSTEM

(1304- )GSE3#

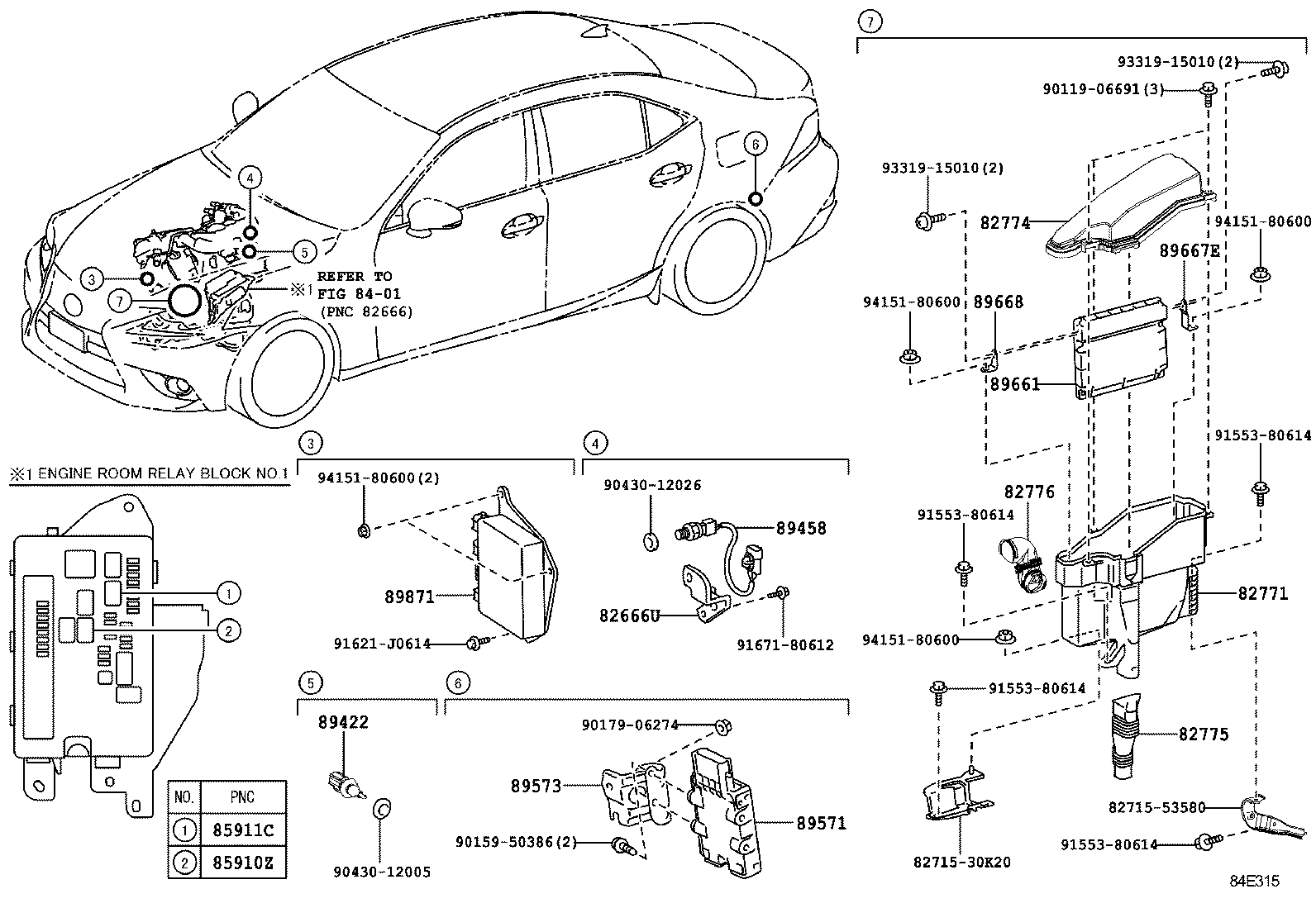

 IS250 350 300H |  ELECTRONIC FUEL INJECTION SYSTEM 82666U - HOLDER, CONNECTOR  ** Std Part  ** Std Part 82771 - BOX, ENGINE ROOM ECU 82774 - COVER, ENGINE ROOM ECU 82775 - DUCT, ENGINE ROOM ECU INLET 82776 - DUCT, ENGINE ROOM ECU OUTLET ** Refer Fig 85910Z - RELAY, INJECTION (FOR EFI) 85911C - RELAY, EFI 2 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) 89458 - SENSOR, FUEL PRESSURE 89571 - COMPUTER, FUEL PUMP CONTROL 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER 89661 - COMPUTER, ENGINE CONTROL 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 89871 - DRIVER, INJECTOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
