LEXUS IS250 350 300H AVE30R-AEXLHQ / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

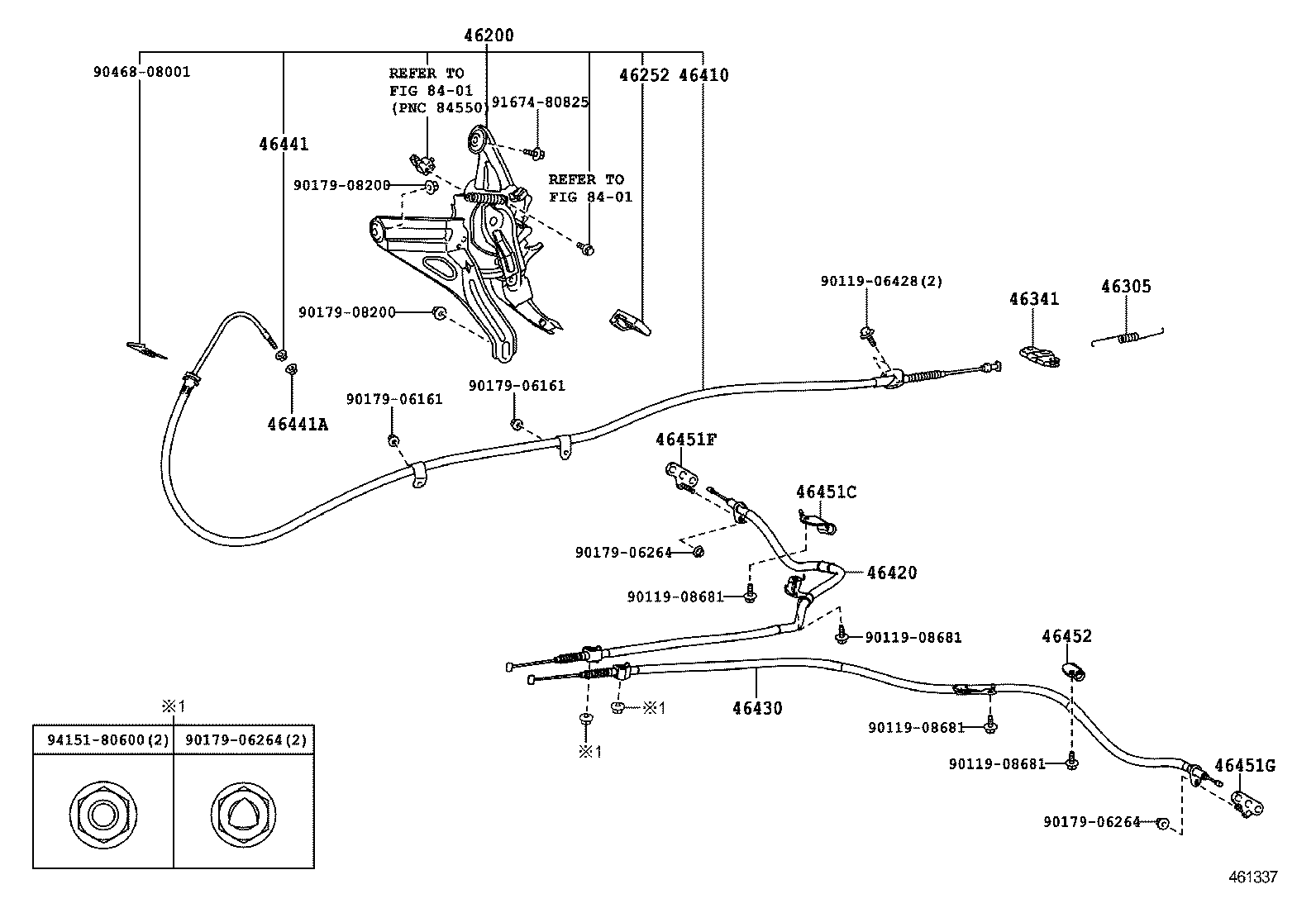

ILLUST NO. 1 OF 2(1304- )ARL

IS250 350 300H | PARKING BRAKE CABLE 46200 - PEDAL ASSY, PARKING BRAKE CONTROL 46252 - PAD, PARKING PEDAL 46305 - SPRING, PARKING BRAKE RETURN W/DAMPER 46341 - EQUALIZER, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46441A - NUT, WIRE ADJUSTING, NO.2 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 46451F - BRACKET, CABLE SUPPORT 46451G - BRACKET, CABLE SUPPORT 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
