LEXUS IS250 350 300H AVE30R-AEXLHQ / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

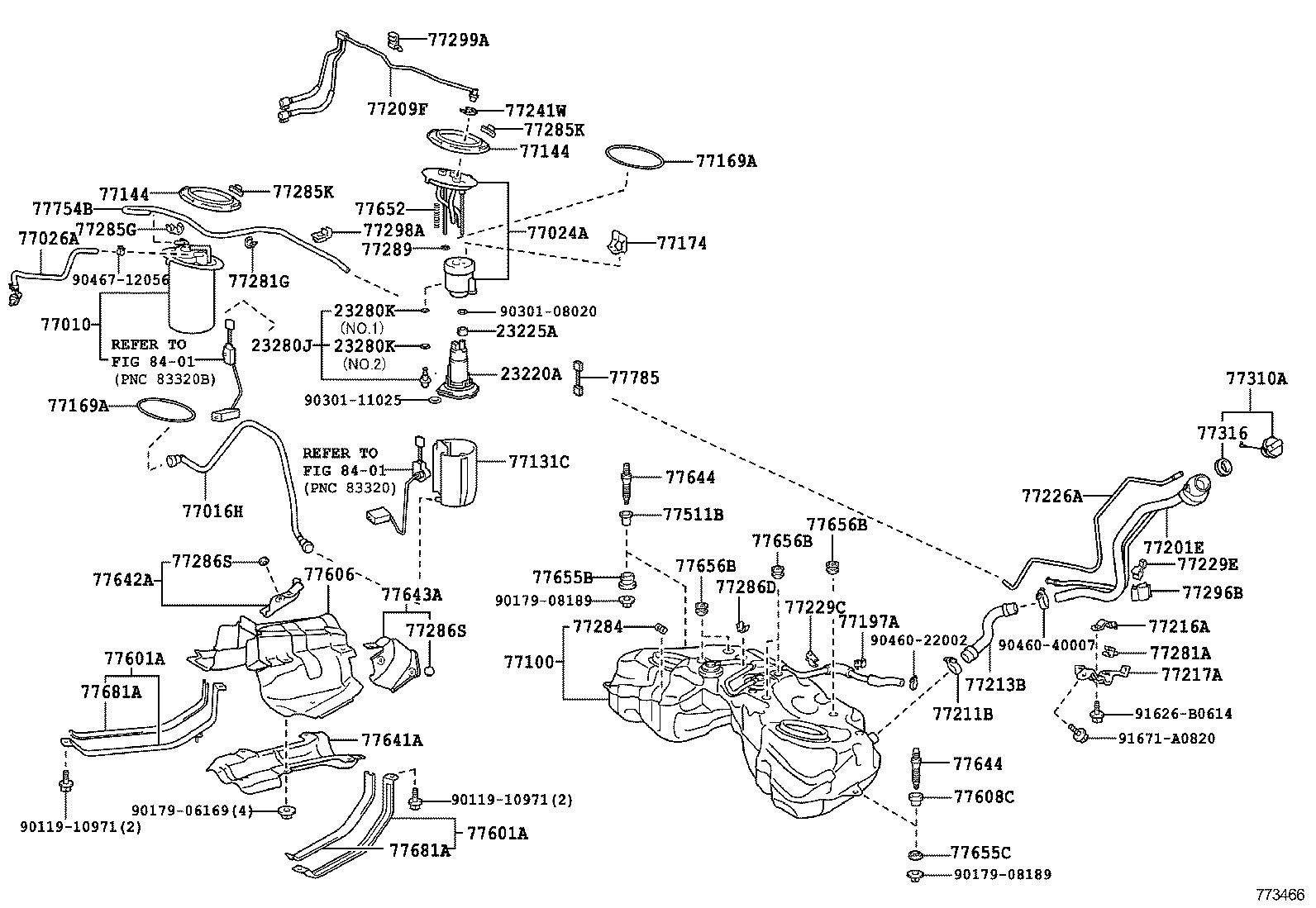

FUEL TANK ILLUST NO. 1 OF 3(1304- )AVE30

IS250 350 300H | FUEL TANK TUBE 23220A - PUMP ASSY, FUEL W/FILTER 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77010 - TUBE ASSY, FUEL TANK VENT 77016H - TUBE SUB-ASSY, FUEL RETURN VENT 77024A - PLATE SUB-ASSY, FUEL SUCTION 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77100 - TANK ASSY, FUEL 77131C - SUB-TANK, FUEL, NO.1 77144 - RETAINER, FUEL PUMP GAUGE 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77211B - CLAMP (FOR FUEL FILLER PIPE) 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77229E - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77281A - CLAMP, FUEL FILLER PIPE 77281G - CLAMP, FUEL HOSE 77284 - CLAMP, FUEL TUBE 77285G - CLAMP, FUEL TUBE, NO.1 77285K - CLAMP, FUEL TUBE, NO.1 77285K - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286S - CUSHION, FUEL TANK PROTECTOR 77286S - CUSHION, FUEL TANK PROTECTOR 77289 - HOLDER, FUEL TANK PIPE SETTING 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 77298A - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77511B - BRACKET, FUEL TANK 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77608C - CUSHION SET, FUEL TANK 77641A - PROTECTOR, FUEL TANK, NO.1 77642A - PROTECTOR, FUEL TANK, NO.2 77643A - PROTECTOR, FUEL TANK, NO.3 77644 - BOLT, FUEL TANK 77644 - BOLT, FUEL TANK 77652 - CUSHION, FUEL TANK, NO.1 77655B - CUSHION, FUEL TANK 77655C - CUSHION, FUEL TANK 77656B - CUSHION, FUEL TANK, NO.6 77656B - CUSHION, FUEL TANK, NO.6 77656B - CUSHION, FUEL TANK, NO.6 77681A - SEAT, FUEL TANK BAND 77681A - SEAT, FUEL TANK BAND 77754B - HOSE, CHARCOAL CANISTER OUTLET 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
