LEXUS IS250 350 300H AVE30L-AEXLH / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(1304- )2ARFSE..GEN

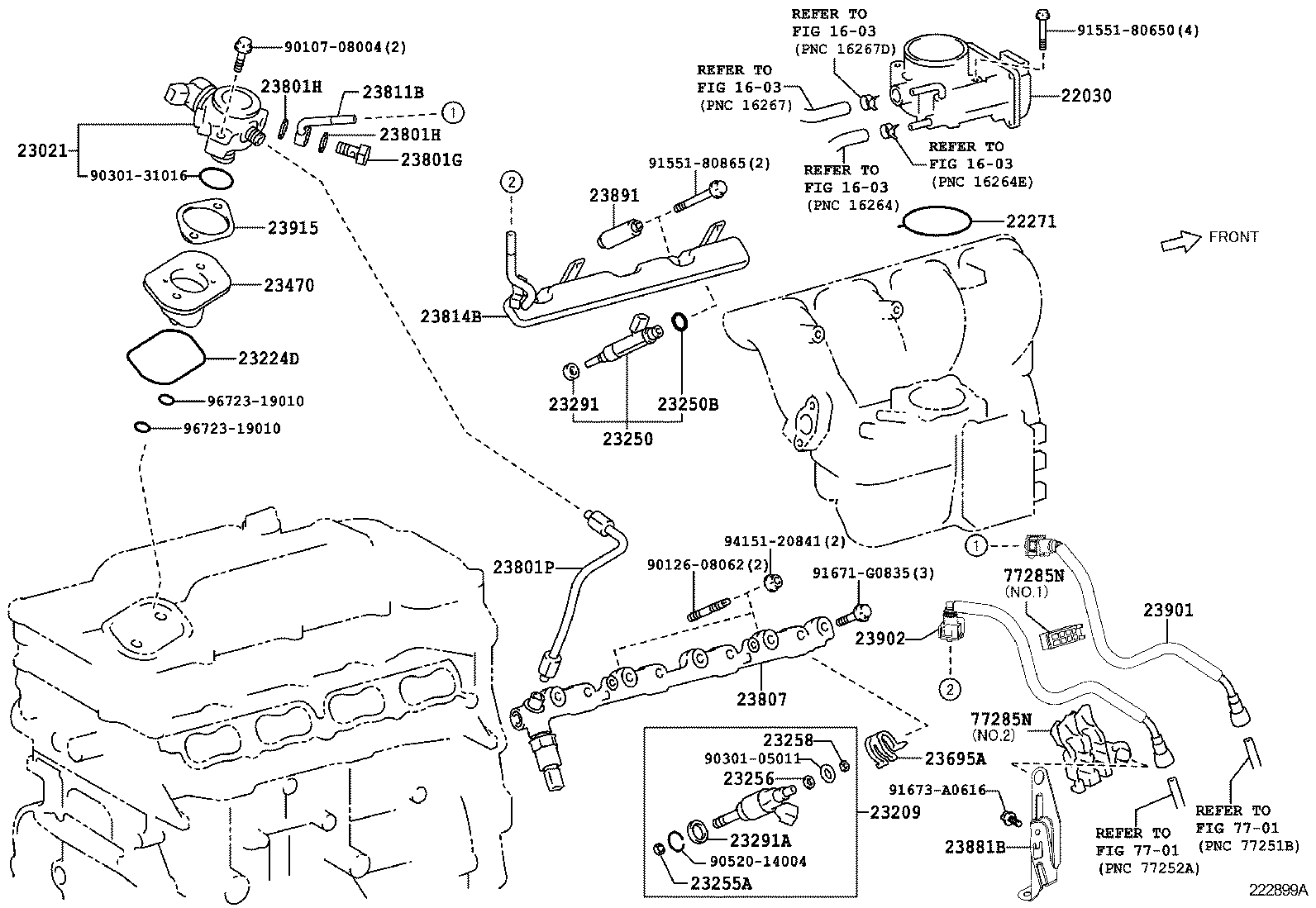

 IS250 350 300H |  FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 22271 - GASKET, THROTTLE BODY 23021 - PUMP SUB-ASSY, FUEL W/SEAL 23209 - INJECTOR SET, FUEL 23224D - GASKET, FUEL PUMP SPACER 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23255A - SEAL, FUEL INJECTOR 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 23291 - INSULATOR, INJECTOR VIBRATION 23291A - INSULATOR, INJECTOR VIBRATION 23470 - LIFTER ASSY, FUEL PUMP 23695A - CLAMP, NOZZLE HOLDER 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23811B - PIPE, FUEL, NO.1 23814B - PIPE, FUEL DELIVERY 23881B - BRACKET, FUEL HOSE 23891 - SPACER, FUEL DELIVERY 23901 - TUBE SUB-ASSY, FUEL 23902 - TUBE SUB-ASSY, FUEL 23915 - INSULATOR, FUEL PUMP ** Refer Fig ** Refer Fig 77285N - CLAMP, FUEL TUBE, NO.1 77285N - CLAMP, FUEL TUBE, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
