LEXUS RX270 350 450H GYL15R-AWXGKW / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

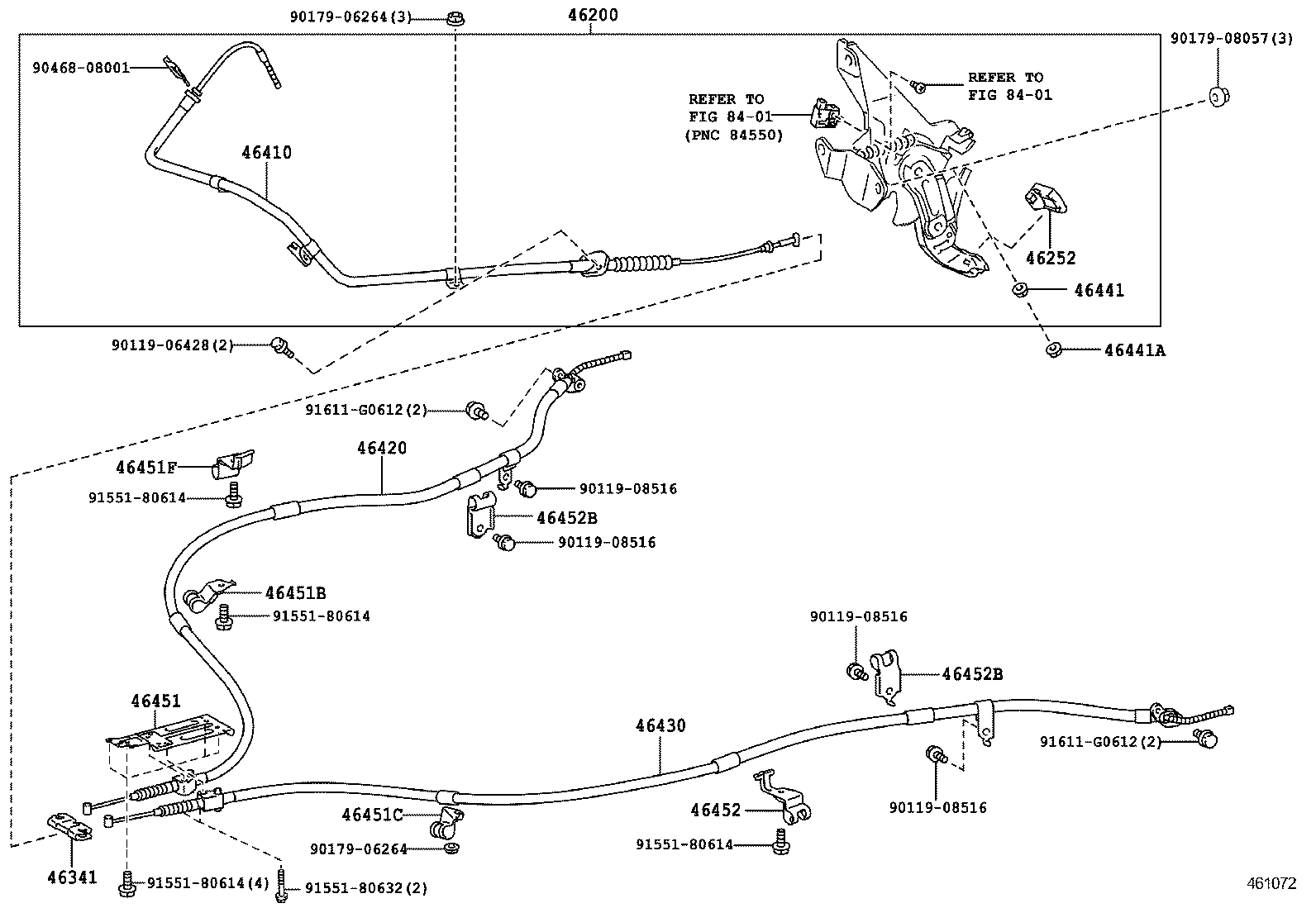

PARKING BRAKE CABLE

ILLUST NO. 1 OF 2(0903- )GYL1#..RHD

 RX270 350 450H |  PARKING BRAKE CABLE 46200 - PEDAL ASSY, PARKING BRAKE CONTROL 46252 - PAD, PARKING PEDAL 46341 - EQUALIZER, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46441A - NUT, WIRE ADJUSTING, NO.2 46451 - BRACKET, CABLE SUPPORT 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 46451F - BRACKET, CABLE SUPPORT 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 46452B - BRACKET, CABLE SUPPORT, NO.2 46452B - BRACKET, CABLE SUPPORT, NO.2 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
