LEXUS IS F USE20L-FEZRHV / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

(1008- )

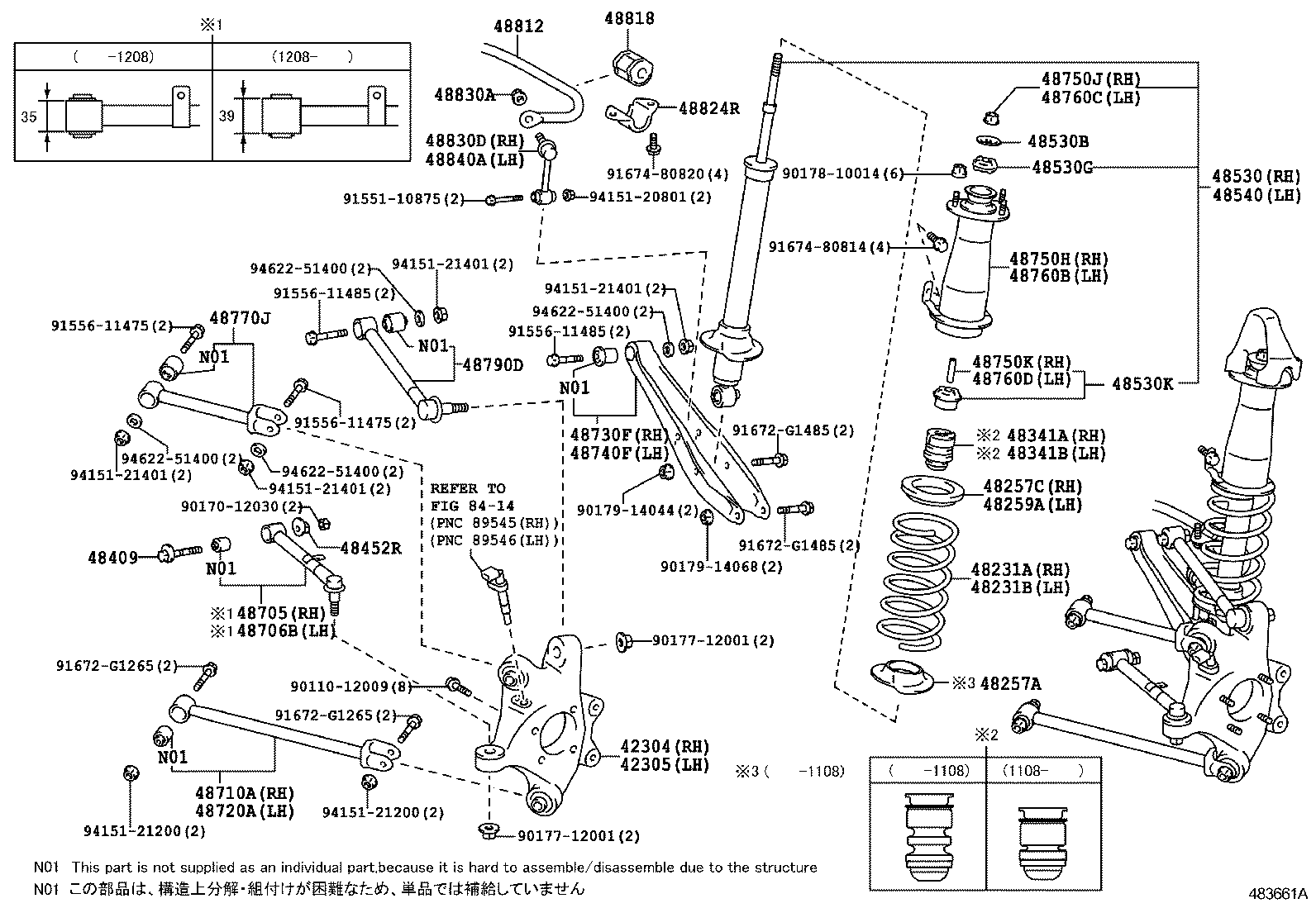

 IS F |  REAR SPRING SHOCK ABSORBER 42304 - CARRIER SUB-ASSY, REAR AXLE, RH 42305 - CARRIER SUB-ASSY, REAR AXLE, LH 48231A - SPRING, COIL, REAR RH 48231B - SPRING, COIL, REAR LH 48257A - INSULATOR, REAR COIL SPRING, LOWER 48257C - INSULATOR, REAR COIL SPRING, UPPER RH 48259A - INSULATOR, REAR COIL SPRING, UPPER LH 48341A - BUMPER, REAR SPRING, NO.1 RH 48341B - BUMPER, REAR SPRING, NO.1 LH 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 48540 - ABSORBER ASSY, SHOCK, REAR LH 48705 - LINK SUB-ASSY, TOE CONTROL, RH 48706B - LINK SUB-ASSY, TOE CONTROL, LH 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH 48750H - SUPPORT ASSY, REAR SUSPENSION, RH 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) 48760B - SUPPORT ASSY  REAR SUSPENSION, LH 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) 48770J - ARM ASSY, UPPER CONTROL, REAR NO.1 48790D - ARM ASSY, UPPER CONTROL, REAR NO.2 48812 - BAR, STABILIZER, REAR 48818 - BUSH, STABILIZER, REAR 48824R - BRACKET, STABILIZER(FOR REAR) 48830A - NUT(FOR REAR STABILIZER LINK) 48830D - LINK ASSY, REAR STABILIZER, RH 48840A - LINK ASSY, REAR STABILIZER, LH ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
