LEXUS IS250C 300C GSE22R-AKTLK / BODY / PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

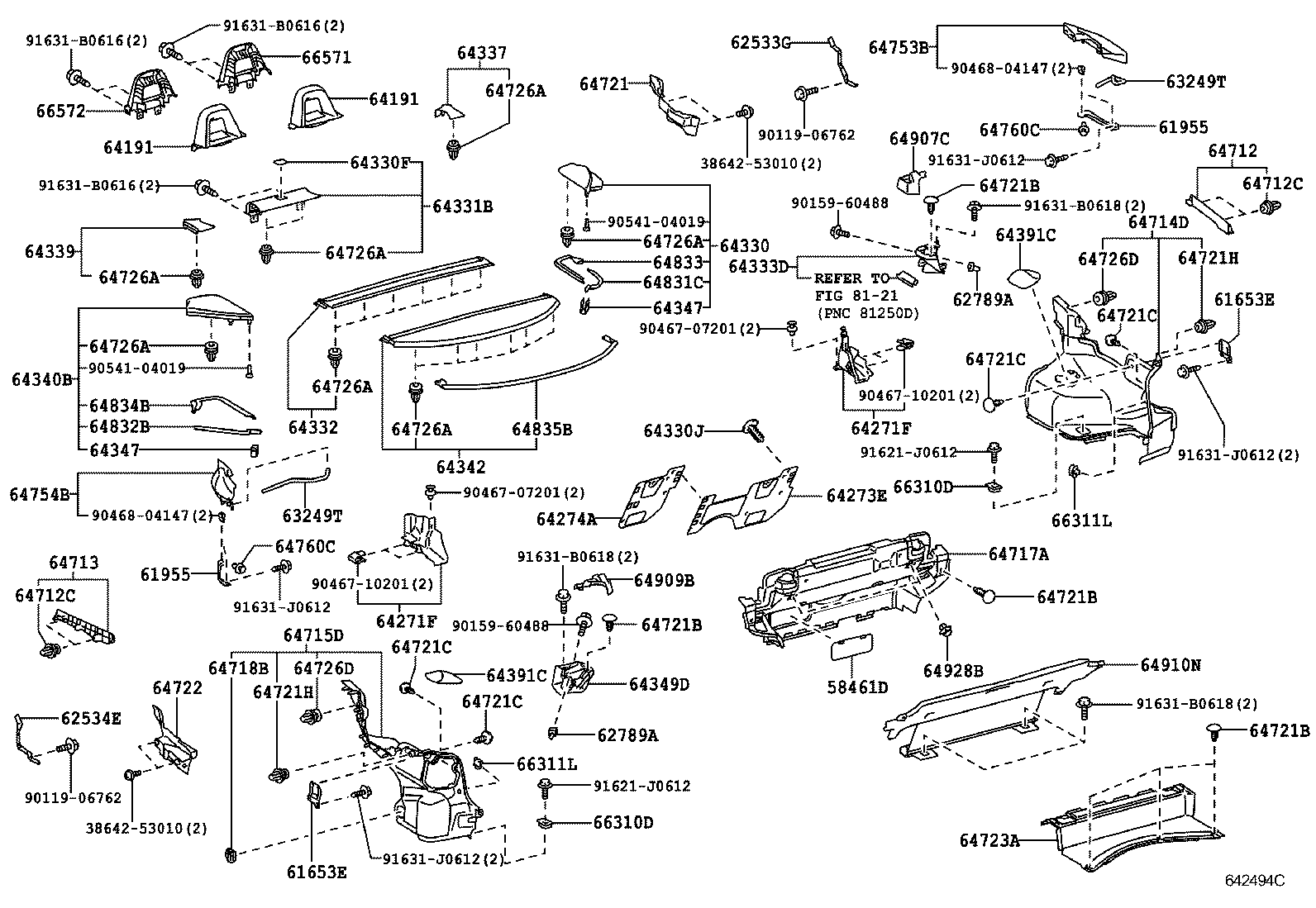

ILLUST NO. 1 OF 2(0904- )

 IS250C 300C |  PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT  ** Std Part  ** Std Part 58461D - COVER, JUNCTION BLOCK SERVICE 61653E - BRACKET, DECK SIDE TRIM 61653E - BRACKET, DECK SIDE TRIM 61955 - BRACKET, SIDE TRIM, UPPER NO.1 61955 - BRACKET, SIDE TRIM, UPPER NO.1 62533G - BRACKET, QUARTER TRIM, RH 62534E - BRACKET, SIDE TRIM, NO.2 62789A - SPACER 62789A - SPACER 63249T - HOSE, REMOVABLE ROOF DRAIN 63249T - HOSE, REMOVABLE ROOF DRAIN 64191 - PLATE, PACKAGE TRAY REAR END 64191 - PLATE, PACKAGE TRAY REAR END 64271F - TRIM, ROOM PARTITION 64271F - TRIM, ROOM PARTITION 64273E - PAD, ROOM PARTITION 64274A - PAD, ROOM PARTITION, NO.2 64330 - PANEL ASSY, PACKAGE TRAY TRIM 64330F - LID SUB-ASSY, PACKAGE TRAY TRIM POCKET 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) 64331B - BOARD, PACKAGE TRAY TRIM, FRONT 64332 - COVER, PACKAGE TRAY TRIM 64333D - COVER, PACKAGE TRAY TRIM SIDE, RH 64337 - GARNISH, PACKAGE TRAY TRIM, RH 64339 - GARNISH, PACKAGE TRAY TRIM, LH 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 64342 - COVER, PACKAGE TRAY TRIM, UNDER 64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE 64347 - RETAINER, PACKAGE TRAY TRIM EDGE SIDE 64349D - COVER, PACKAGE TRAY TRIM SIDE, LH 64391C - CAP 64391C - CAP 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT 64718B - COVER, LUGGAGE TRIM SERVICE HOLE 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 64721C - CLIP(LUGGAGE COMPARTMENT) 64721C - CLIP(LUGGAGE COMPARTMENT) 64721C - CLIP(LUGGAGE COMPARTMENT) 64721C - CLIP(LUGGAGE COMPARTMENT) 64721H - CLIP(LUGGAGE COMPARTMENT) 64721H - CLIP(LUGGAGE COMPARTMENT) 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH 64723A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726D - CLIP, LUGGAGE TRIM, REAR 64726D - CLIP, LUGGAGE TRIM, REAR 64753B - PLATE, REAR FLOOR FINISH SIDE, RH 64754B - PLATE, REAR FLOOR FINISH SIDE, LH 64760C - CLIP(FOR DECK SIDE TRIM PANEL) 64760C - CLIP(FOR DECK SIDE TRIM PANEL) 64831C - WEATHERSTRIP, BACK WINDOW GLASS, RH 64832B - WEATHERSTRIP, BACK WINDOW GLASS, LH 64833 - WEATHERSTRIP, BACK WINDOW CHANNEL 64834B - WEATHERSTRIP, BACK WINDOW GLASS, INNER 64835B - WEATHERSTRIP, BACK WINDOW GLASS, CENTER 64907C - STOPPER SUB-ASSY, TONNEAU COVER, RH 64909B - STOPPER SUB-ASSY, TONNEAU COVER, LH 64910N - COVER ASSY, TONNEAU 64928B - HOLDER, TONNEAU COVER HOOK 66310D - HOOK ASSY, ROPE 66310D - HOOK ASSY, ROPE 66311L - HOOK,ROPE 66311L - HOOK,ROPE 66571 - GARNISH, ROLL OVER, RH 66572 - GARNISH, ROLL OVER, LH ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
