LEXUS ES240 350 ACV40L-BEAGKC / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(0605- )

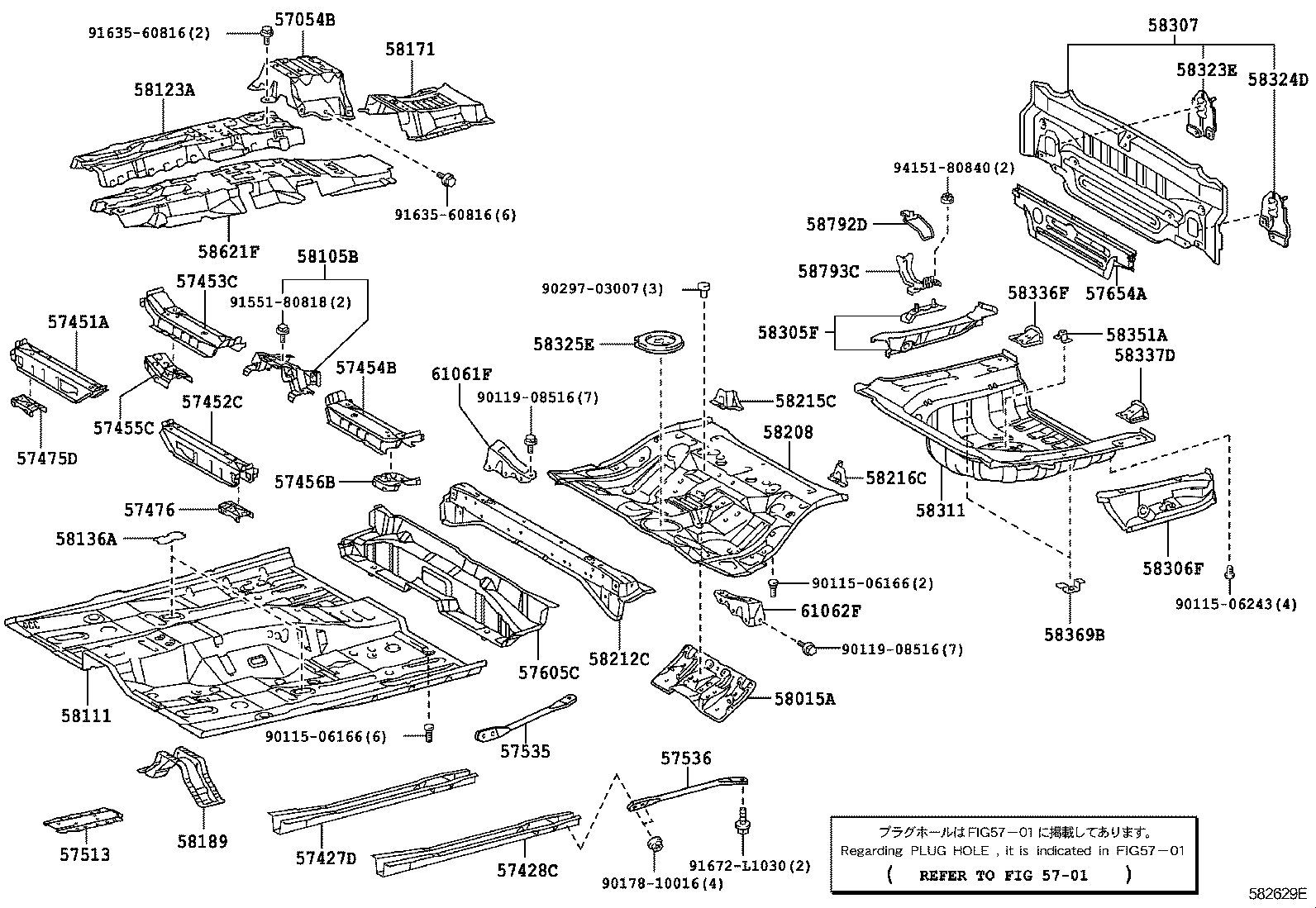

ES240 350 | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57054B - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.4 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH 57451A - MEMBER, FRONT FLOOR CROSS, RH 57452C - MEMBER, FRONT FLOOR CROSS, LH 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH 57455C - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH 57456B - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH 57513 - REINFORCEMENT, FRONT FLOOR, LH 57535 - BRACE, FRONT FLOOR, RH 57536 - BRACE, FRONT FLOOR, LH 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57654A - MEMBER, REAR FLOOR CROSS, NO.3 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET 58208 - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58336F - REINFORCEMENT, REAR FLOOR PAN, RH 58337D - REINFORCEMENT, REAR FLOOR PAN, LH 58351A - BRACKET, SPARE WHEEL CARRIER 58369B - BRACKET, FUEL TUBE, NO.3 58621F - SILENCER, CENTER CONSOLE, NO.1 58792D - SUPPORT, JACK 58793C - BRACKET, JACK CARRIER, NO.1 61061F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 61062F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
