LEXUS GS30 35 43 460 URS190L-BEZQKV / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(0809- )1URFE

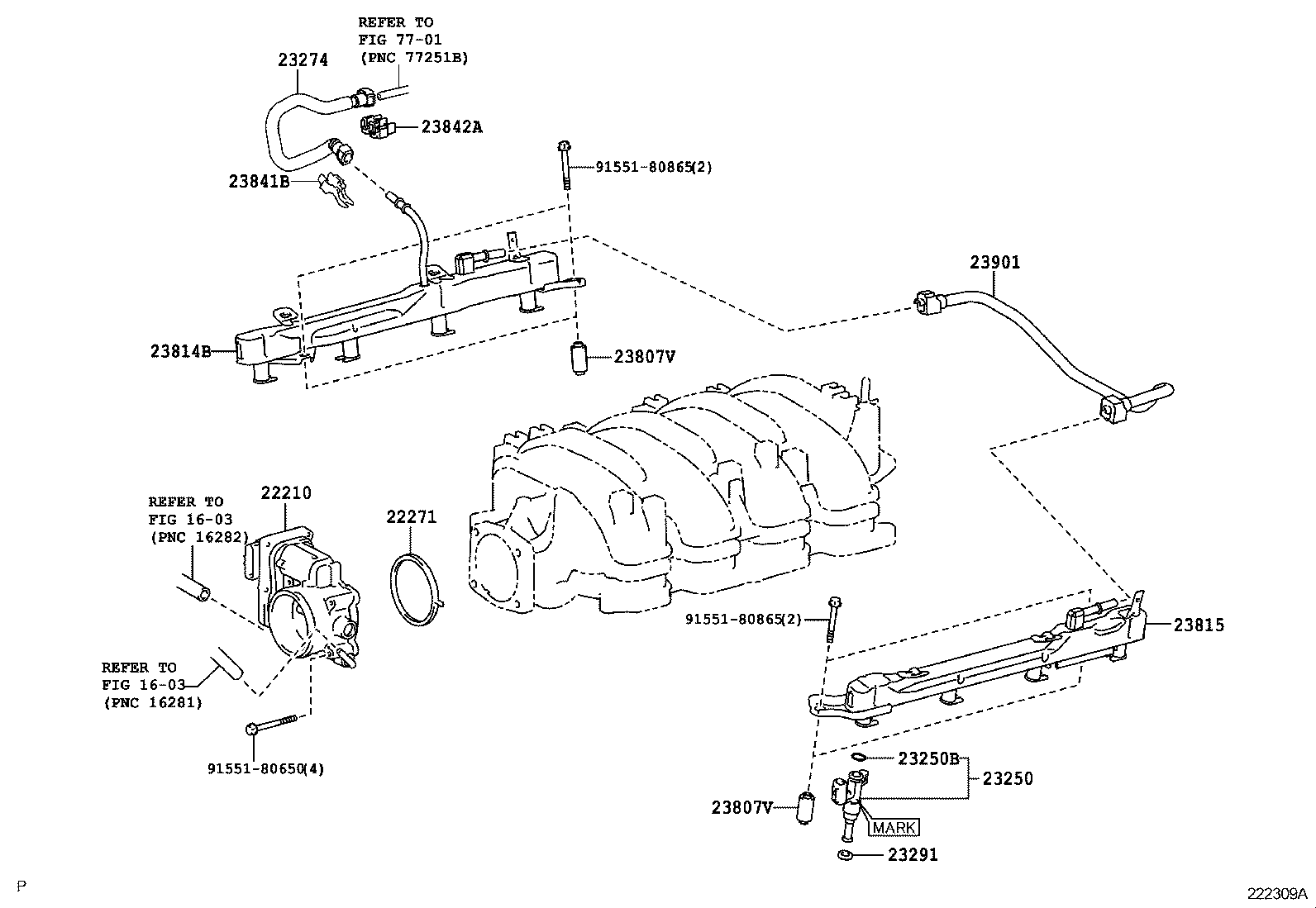

 GS30 35 43 460 |  FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig 22210 - BODY ASSY, THROTTLE 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23274 - HOSE, FUEL, NO.3 23291 - INSULATOR, INJECTOR VIBRATION 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23814B - PIPE, FUEL DELIVERY 23815 - PIPE, FUEL DELIVERY, NO.2 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23901 - TUBE SUB-ASSY, FUEL ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
