LEXUS GS30 35 43 460 GRS190R-BETQHW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

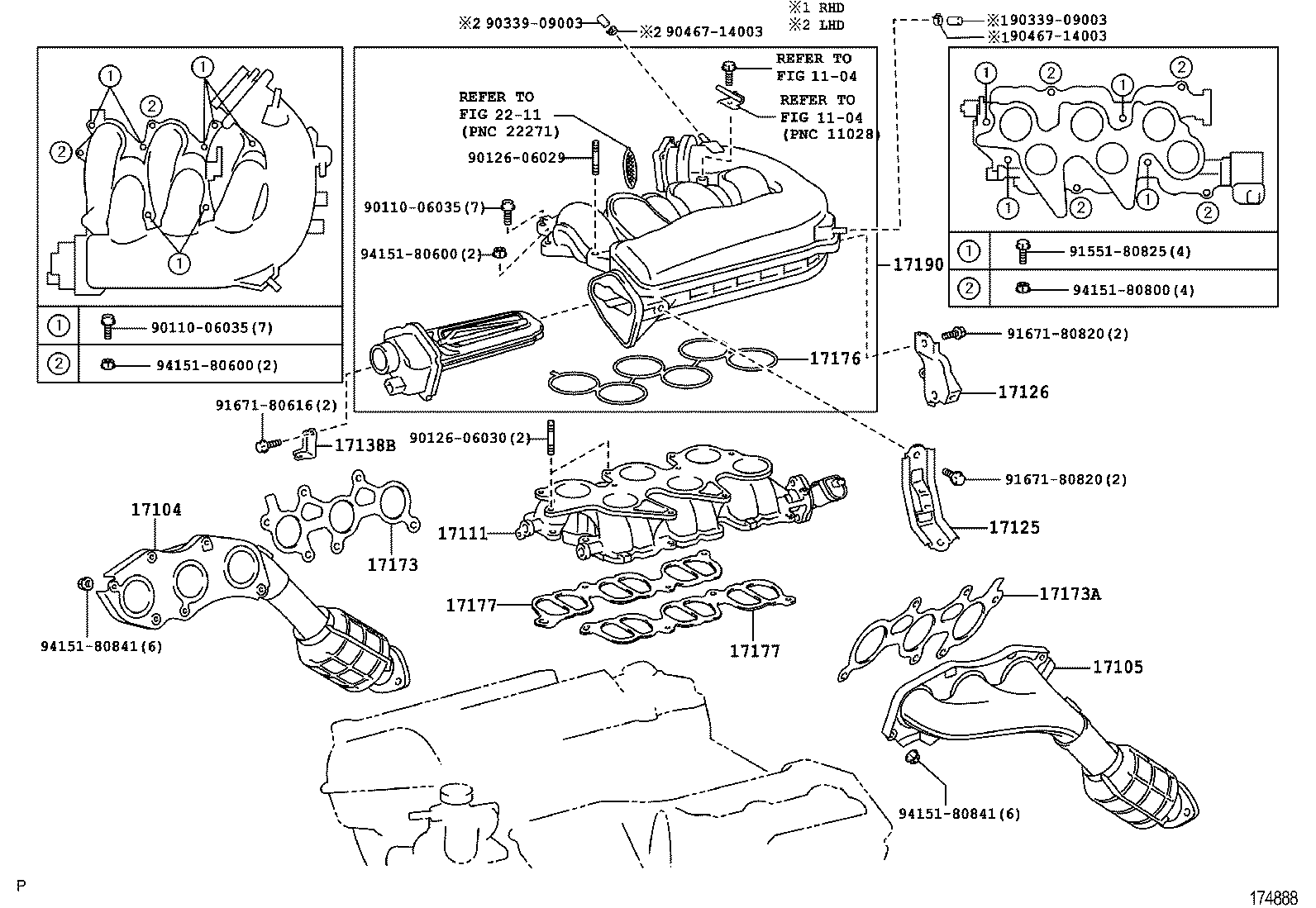

MANIFOLD

(0501- )3GRFSE

 GS30 35 43 460 |  MANIFOLD ** Refer Fig ** Refer Fig 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH 17111 - MANIFOLD, INTAKE 17125 - STAY, SURGE TANK, NO.1 17126 - STAY, SURGE TANK, NO.2 17138B - STAY, INTAKE MANIFOLD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17190 - TANK ASSY, INTAKE AIR SURGE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
