LEXUS ES300 MCV30R-BEAGKQ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(0107- )

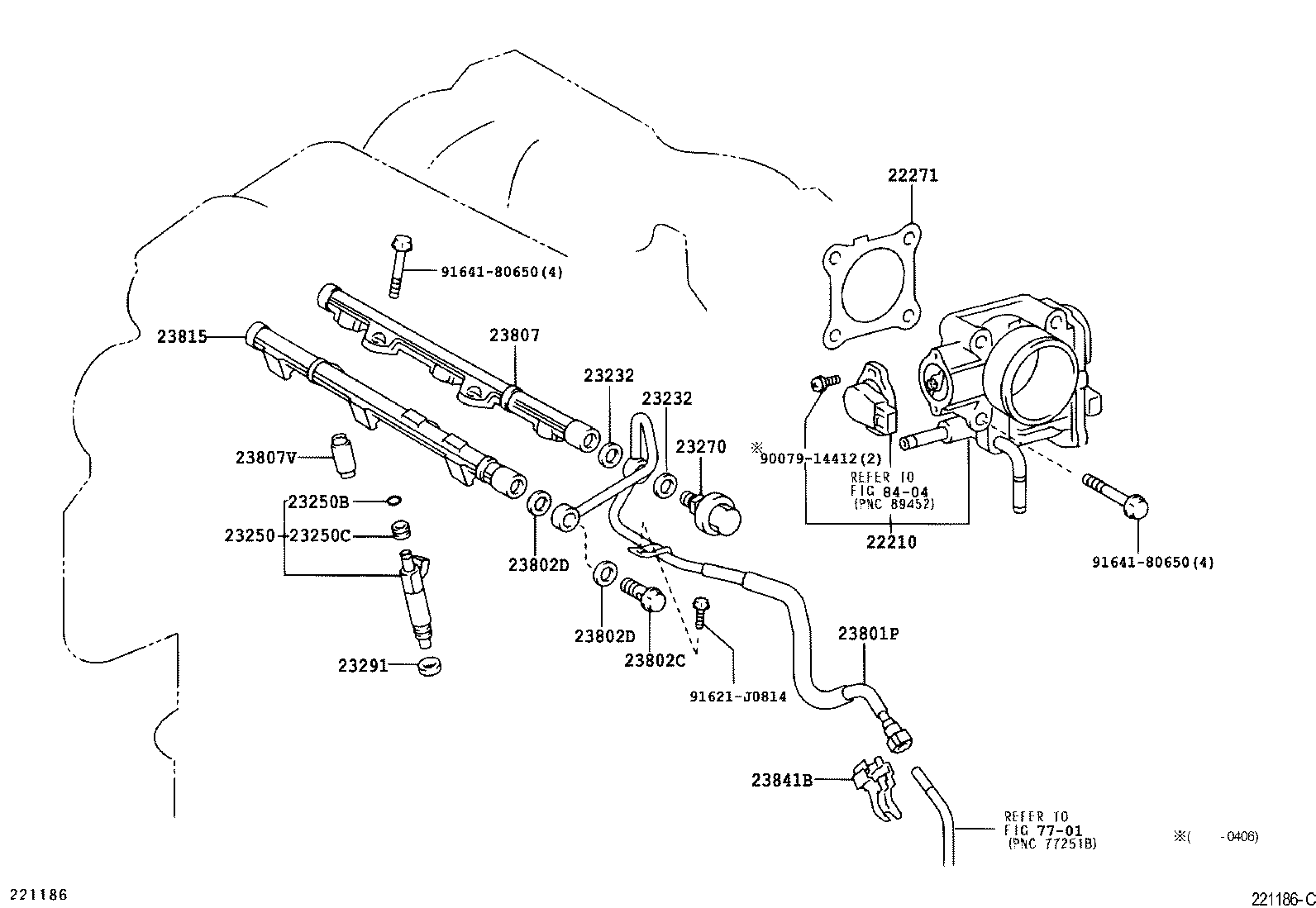

 ES300 |  FUEL INJECTION SYSTEM 22210 - BODY ASSY, THROTTLE 22271 - GASKET, THROTTLE BODY 23232 - GASKET(FOR FUEL PUMP HOSE) 23232 - GASKET(FOR FUEL PUMP HOSE) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23291 - INSULATOR, INJECTOR VIBRATION 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23815 - PIPE, FUEL DELIVERY, NO.2 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
