LEXUS ES300 MCV30R-BEAGKQ / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

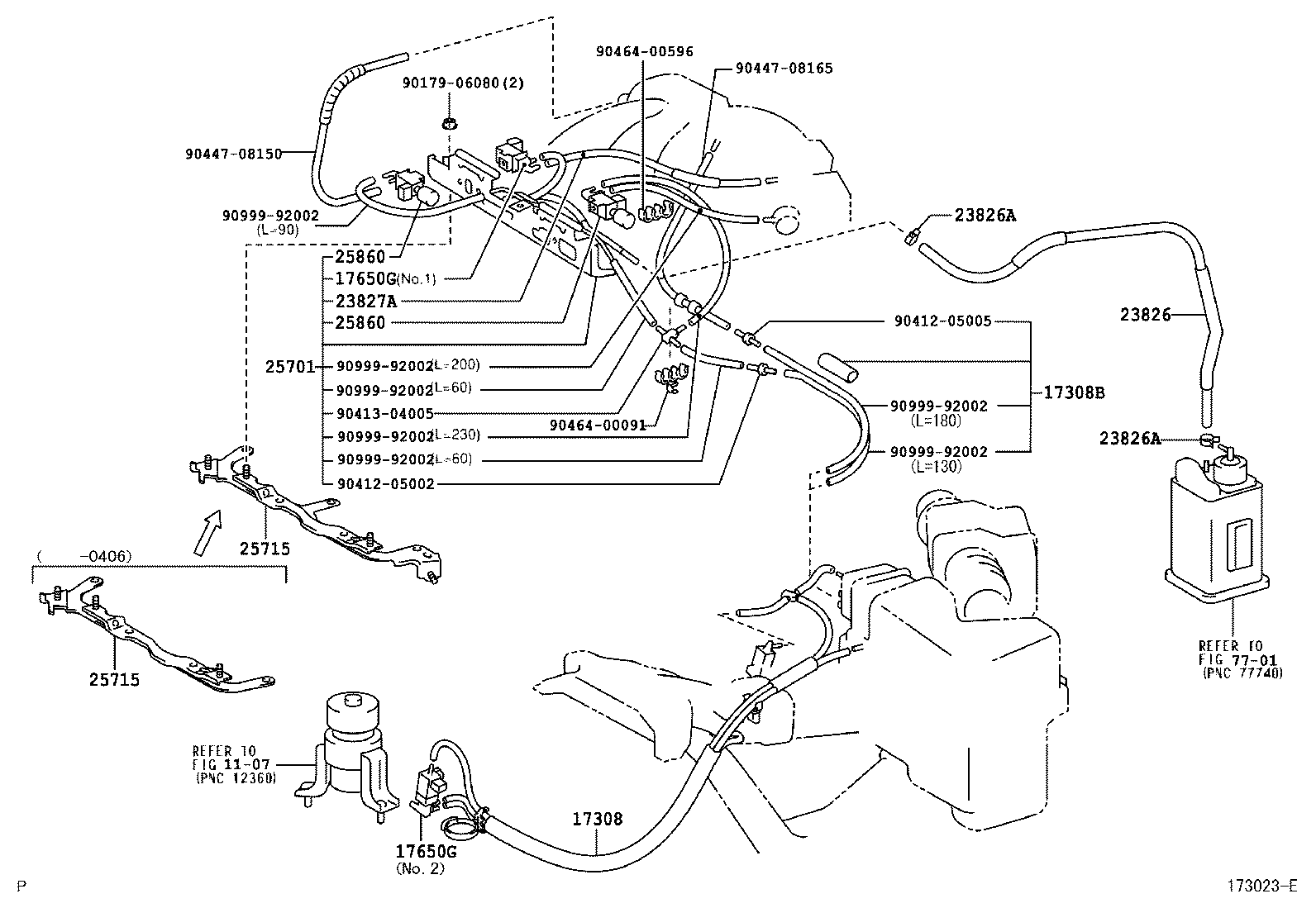

VACUUM PIPING

TYPE A (0107- )

 ES300 |  VACUUM PIPING ** Refer Fig 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) 17308B - HOSE SUB-ASSY, VACUUM 17650G - VALVE, DUTY VACUUM SWITCHING 17650G - VALVE, DUTY VACUUM SWITCHING 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23827A - HOSE, FUEL VAPOR FEED, NO.2 25701 - VALVE SET, EMISSION CONTROL 25715 - BRACKET, EMISSION CONTROL VALVE 25715 - BRACKET, EMISSION CONTROL VALVE 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
