LEXUS ES300 MCV30R-BEAGKQ / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

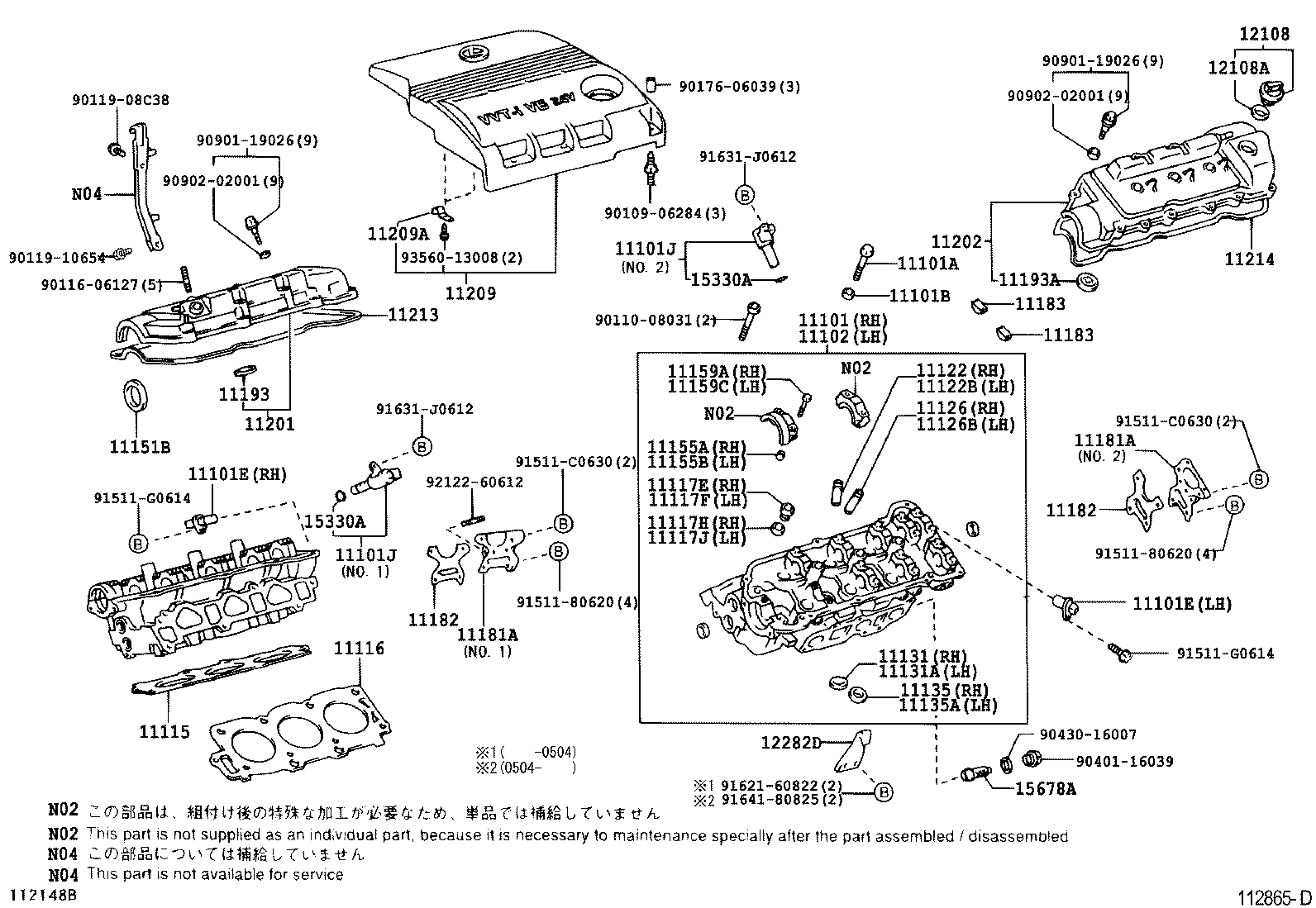

CYLINDER HEAD

(0307- )

 ES300 |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101E - SENSOR, CAM POSITION 11101E - SENSOR, CAM POSITION 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 11102 - HEAD, CYLINDER, LH 11115 - GASKET, CYLINDER HEAD 11116 - GASKET, CYLINDER HEAD, NO.2 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 11117H - GASKET(FOR WATER HOLE) 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11122 - BUSH, INTAKE VALVE GUIDE 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 11126 - BUSH, EXHAUST VALVE GUIDE 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 11131 - SEAT, INTAKE VALVE 11131A - SEAT, INTAKE VALVE, NO.2 11135 - SEAT, EXHAUST VALVE 11135A - SEAT, EXHAUST VALUE, NO.2 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) 11155A - PIN, RING W/HEAD 11155B - PIN, RING 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11181A - COVER, CYLINDER HEAD, REAR 11181A - COVER, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11182 - GASKET, CYLINDER HEAD REAR PLATE 11183 - PLUG, SEMICIRCULAR 11183 - PLUG, SEMICIRCULAR 11193 - GASKET, SPARK PLUG TUBE 11193A - GASKET, SPARK PLUG TUBE, LH 11201 - COVER SUB-ASSY, CYLINDER HEAD 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH 11209 - COVER SUB-ASSY, V-BANK 11209A - CLAMP, PIPE 11213 - GASKET, CYLINDER HEAD COVER 11214 - GASKET, CYLINDER HEAD COVER, NO.2 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12282D - HANGER, ENGINE, NO.2 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) 15678A - FILTER, OIL CONTROL VALVE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
