LEXUS LS400 UCF20R-AEPGKW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

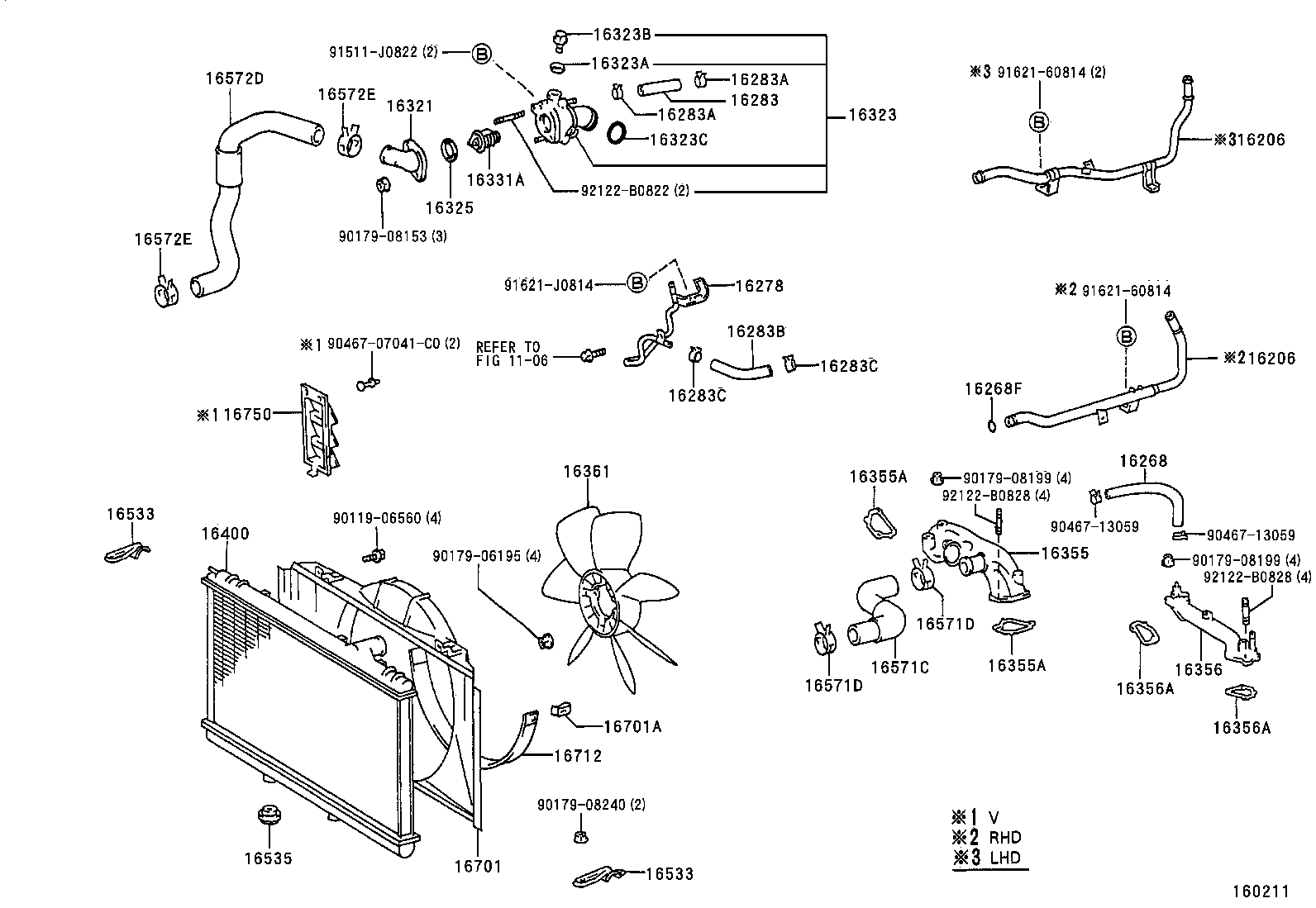

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(9410-9707)

LS400 | RADIATOR WATER OUTLET ** Refer Fig 16206 - PIPE SUB-ASSY, WATER BY-PASS 16206 - PIPE SUB-ASSY, WATER BY-PASS 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283B - HOSE, WATER BY-PASS 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16323A - GASKET(FOR WATER INLET HOUSING) 16323B - PLUG(FOR WATER INLET HOUSING) 16323C - RING, O(FOR WATER INLET HOUSING) 16325 - GASKET, WATER INLET HOUSING, NO.1 16331A - THERMOSTAT 16355 - JOINT, WATER BY-PASS, FRONT 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16356 - JOINT, WATER BY-PASS, REAR 16356A - GASKET(WATER BY-PASS JOINT, REAR) 16356A - GASKET(WATER BY-PASS JOINT, REAR) 16361 - FAN 16400 - RADIATOR ASSY 16533 - SUPPORT, RADIATOR, UPPER 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16701 - SHROUD SUB-ASSY, FAN 16701A - CLIP(FOR FAN SHROUD) 16712 - SHROUD, FAN, NO.2 16750 - DUCT ASSY, FAN SHROUD VENTILATION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
