LEXUS IS250C GSE20R-AKTLHW / ELECTRICAL / RADIO RECEIVER AMPLIFIER CONDENSER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

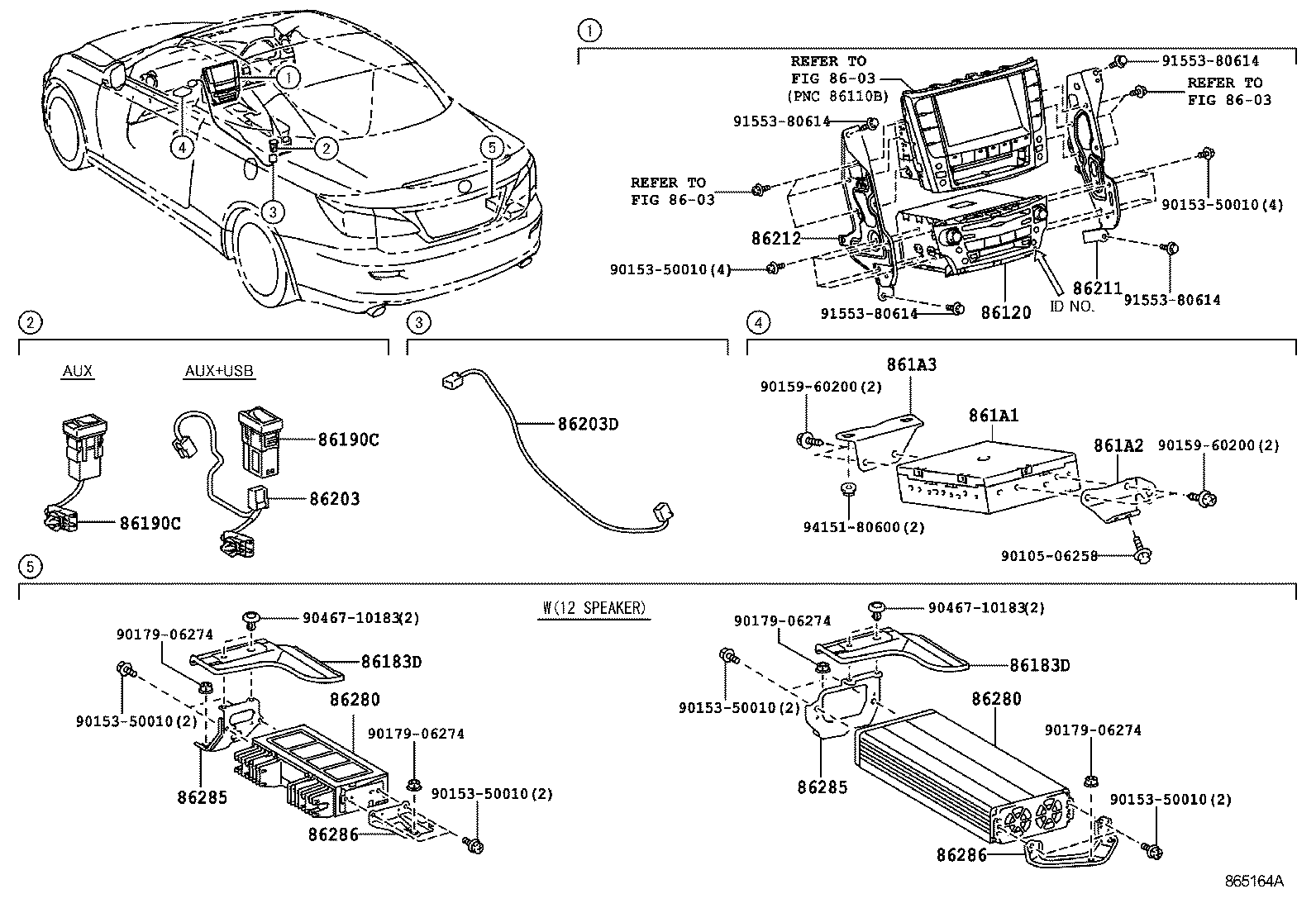

RADIO RECEIVER AMPLIFIER CONDENSER

W/O(EMV) ILLUST NO. 1 OF 2(1208- )RHD

IS250C | RADIO RECEIVER AMPLIFIER CONDENSER ** Refer Fig ** Refer Fig ** Refer Fig 86120 - RECEIVER ASSY, RADIO 86183D - COVER, AUDIO AMPLIFIER 86183D - COVER, AUDIO AMPLIFIER 86190C - ADAPTER ASSY, STEREO JACK, NO.1 86190C - ADAPTER ASSY, STEREO JACK, NO.1 861A1 - COMPUTER, MULTI-MEDIA INTERFACE 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2 86203 - WIRE, RADIO 86203D - WIRE, STEREO COMPONENT, NO.1 86211 - BRACKET, RADIO, NO.1 86212 - BRACKET, RADIO, NO.2 86280 - AMPLIFIER ASSY, STEREO COMPONENT 86280 - AMPLIFIER ASSY, STEREO COMPONENT 86285 - BRACKET, AMPLIFIER, NO.1 86285 - BRACKET, AMPLIFIER, NO.1 86286 - BRACKET, AMPLIFIER, NO.2 86286 - BRACKET, AMPLIFIER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
