LEXUS GS GS HYBRID AWL10R-BEXQHW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

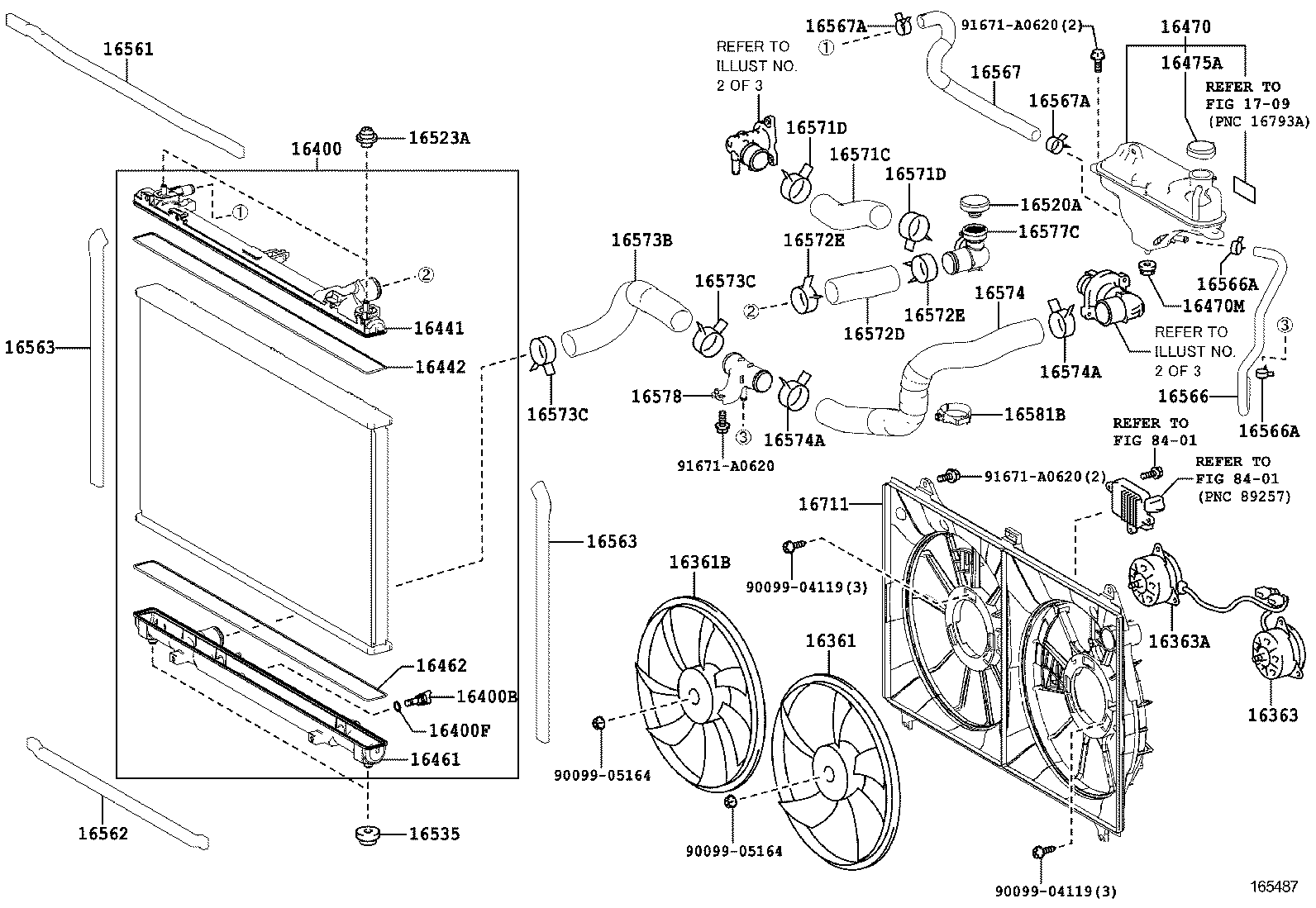

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 3(1309- )2ARFSE

 GS GS HYBRID |  RADIATOR WATER OUTLET 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16470 - TANK ASSY, RADIATOR RESERVE 16470M - GROMMET 16475A - CAP, RESERVE TANK 16520A - CAP SUB-ASSY, WATER FILLER 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16566 - HOSE, RESERVE TANK OUTLET 16566A - CLIP(FOR RESERVE TANK OUTLET) 16566A - CLIP(FOR RESERVE TANK OUTLET) 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16573B - HOSE, RADIATOR, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 16574 - HOSE, RADIATOR, NO.4 16574A - CLIP, RADIATOR HOSE, NO.4 16574A - CLIP, RADIATOR HOSE, NO.4 16577C - PIPE, RADIATOR 16578 - PIPE, RADIATOR, NO.2 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) 16711 - SHROUD, FAN ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
