LEXUS GS GS HYBRID AWL10R-BEXQHW / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CYLINDER HEAD

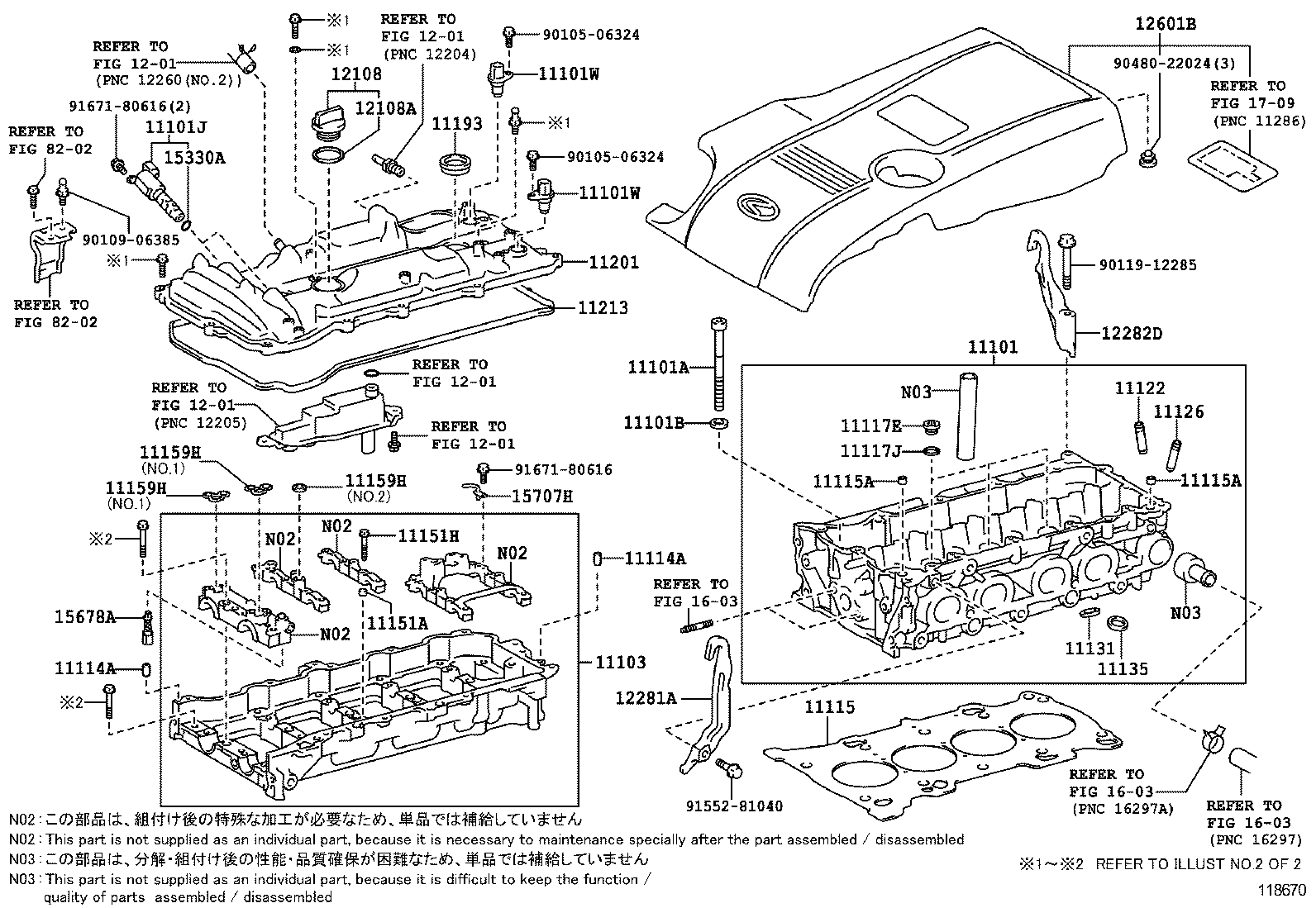

ILLUST NO. 1 OF 2(1309- )2ARFSE

 GS GS HYBRID |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 11101W - SENSOR, CRANK POSITION, NO.1 11101W - SENSOR, CRANK POSITION, NO.1 11103 - HOUSING SUB-ASSY, CAMSHAFT 11114A - PIN, STRAIGHT 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11115A - PIN, RING 11115A - PIN, RING 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE 11193 - GASKET, SPARK PLUG TUBE 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12281A - HANGER, ENGINE, NO.1 12282D - HANGER, ENGINE, NO.2 12601B - COVER SUB-ASSY, ENGINE, NO.1 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) 15678A - FILTER, OIL CONTROL VALVE 15707H - PIPE SUB-ASSY, OIL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
