CYLINDER BLOCK

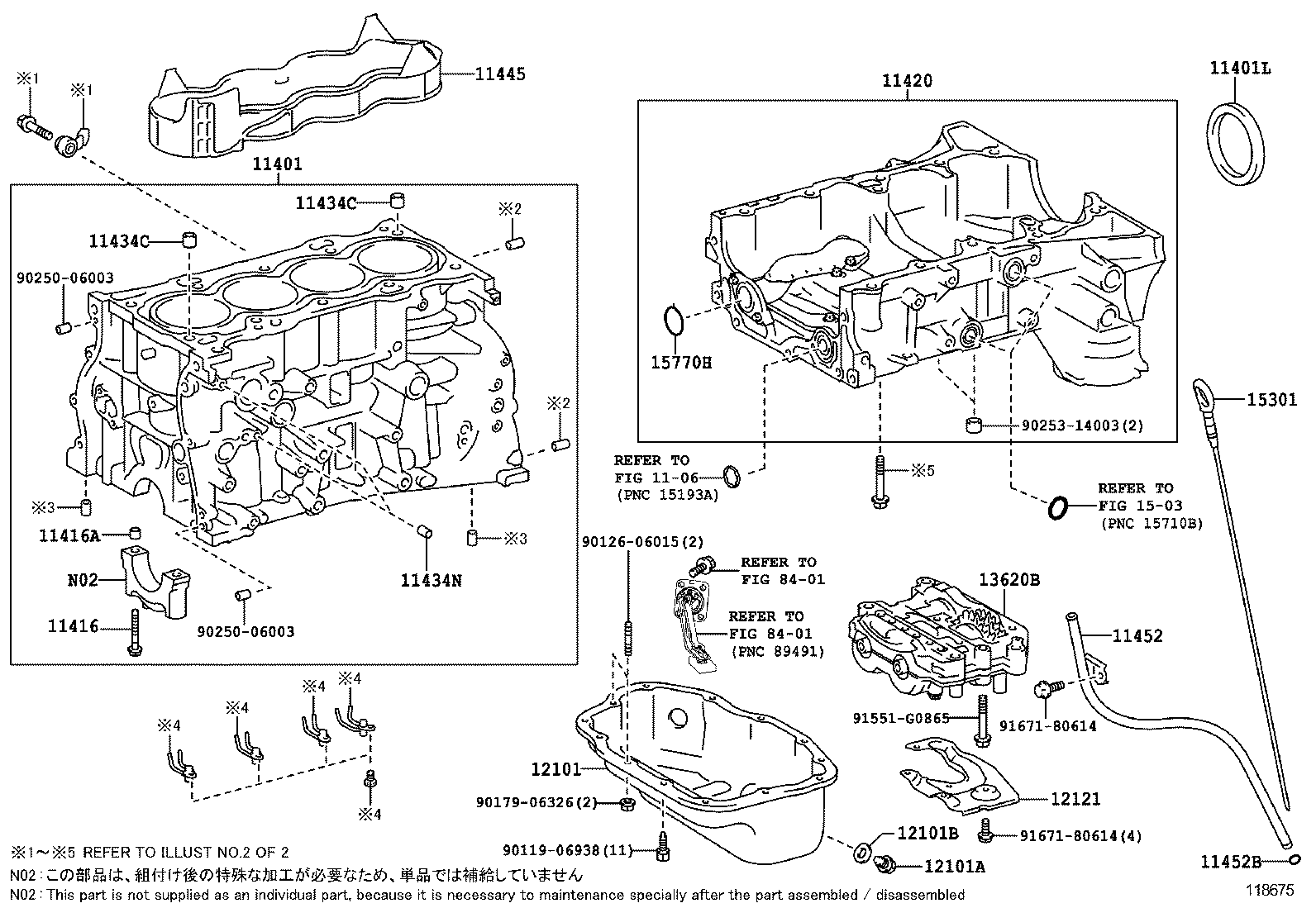

ILLUST NO. 1 OF 2(1309- )2ARFSE

 GS GS HYBRID |  CYLINDER BLOCK ** Refer Fig 11401 - BLOCK SUB-ASSY, CYLINDER 11401L - SEAL, ENGINE REAR OIL 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) 11420 - CRANKCASE ASSY, STIFFENING 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING) 11445 - SPACER, CYLINDER BLOCK WATER JACKET 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12121 - PLATE, OIL PAN BAFFLE, NO.1 13620B - BALANCER ASSY, ENGINE ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15770H - GASKET(FOR OIL PIPE) ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
