LEXUS CT200H ZWA10L-AHXBBW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER UNIT

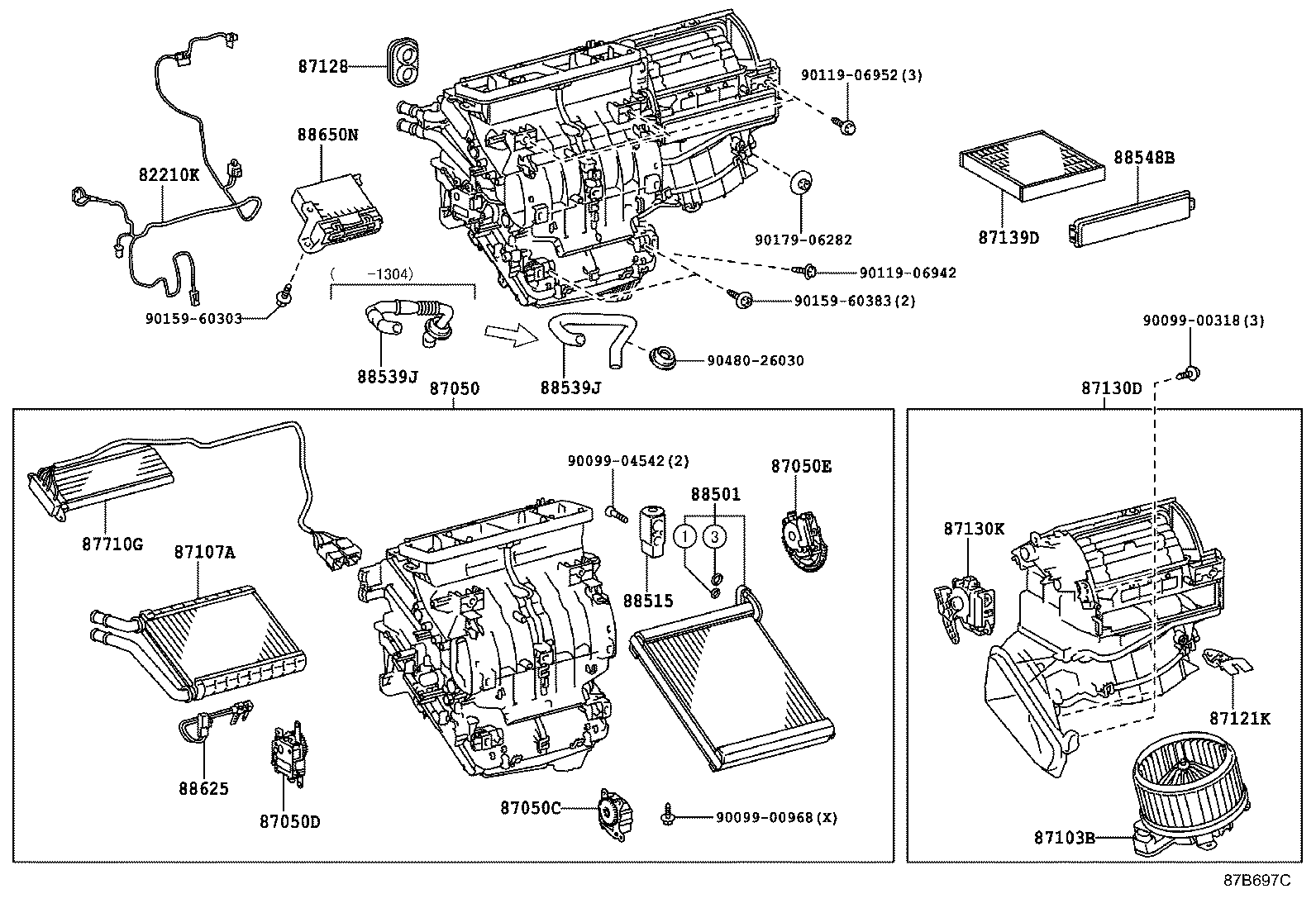

ILLUST NO. 1 OF 2(1012- )LHD

CT200H | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87050 - RADIATOR ASSY, AIR CONDITIONER 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87121K - BRACKET, HEATER 87128 - GROMMET, HEATER 87130D - BLOWER ASSY 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 87139D - ELEMENT, AIR REFINER 87710G - QUICK HEATER ASSY 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539J - HOSE, DRAIN COOLER 88539J - HOSE, DRAIN COOLER 88548B - CASE, AIR FILTER 88625 - THERMISTOR, COOLER, NO.1 88650N - AMPLIFIER ASSY, AIR CONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
